JN01FB jam japan automatic wire crimper
Office Phone (***)-775-2580 Cell Phone (***)-367-0140
Our Asset #:DRW9 / 177 Qty available:1

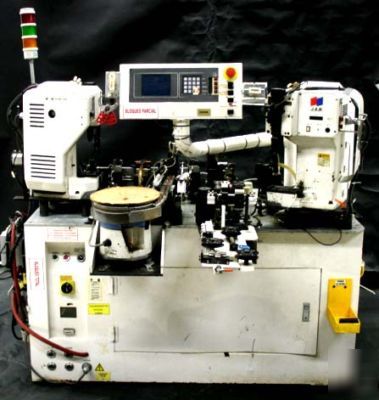

JN01FB JAM Japan Automatic Wire Crimper
NEW replacement price by dealer or factory: $125,000.00
Valoramos el valor de la mercancia, El COMPRADOR dicta el precio de venta! Favor de hacernos su oferta!
All items are available for inspection. Come visit our 100,000 sqft facility with more than 30,000 items in liquidation or click on about me to go to our website.
Back Ground Information on this asset as given to us by seller:
JN01FB Japan Automatic Wire Crimping Machine. We are not familiar with these machines and have no way of testing them. This was reported to have been working fine when pulled from service. This asset is being sold due to an entire plant close down and not due to a problem with the asset. This unit is available for your inspection at our Del Rio Texas warehouse.
Below information is entered because the tag photo may not be clear. This info should is for reference only, KSC can not guaranty this info.
Contact original manufacture for detailed information on this asset, KSC make no representation that this asset is fit for a particular purpose.
Not able to test but looks good
Factory information on the JN01 units:
This is standard machine by computer control from touch panel. Non-contact type strip-miss and crimping-miss sensor are installed as standard. Non-contact strip-miss sensor makes crimping stable more than present machine. Strip chip vacuum system makes a workshop clean. Wide range wire processing and harness available. (Compared with JAM MINIC V)
measuring, cutting, both ends stripping, both ends crimping, auto-blade depth adjustment, auto-crimping position adjustment, auto-strip length adjustment, half-strip on No.1 crimping, step driving
1.0sec/pce (in case of Min. wire length)
in case of half-strip, machine speed will be down due to wire kinds
0.08-2.0mm (AWG#28-#14) Max.O.D 3.4mm
50-20,000mm(9,999mm) Min. cutting length varies depending on stripping length and type of terminal.
variation within 1mm+(set length 0.002)
No.1 side: 1.5-13mm (20mm w/o crimping, 35mm half-stripping)
air pressure down, crimping miss, wire stripping miss, abnormal action of wire reel stand
AC200V(within 10%) 50/60Hz single phase 7A
0.5Mpa(5kg/cm ) approx.200NL/min (use clean dry air)
wire reel stand(bundle, reel), wire pre feeder, paper winding unit, belt chute, wire joint detector, terminal presence/overload detector, emergency light ASY, other maker's applicator conversion kit
3rd Party Inspection report for asset:
