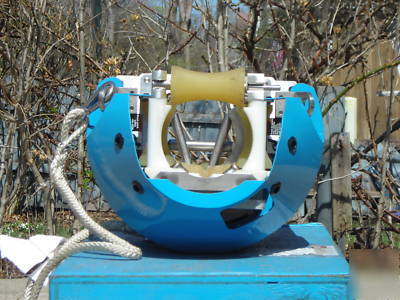

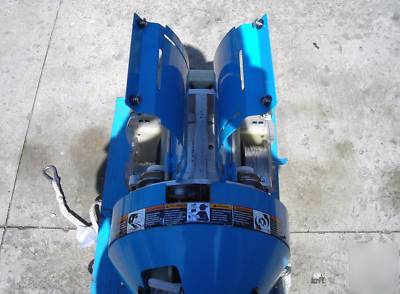

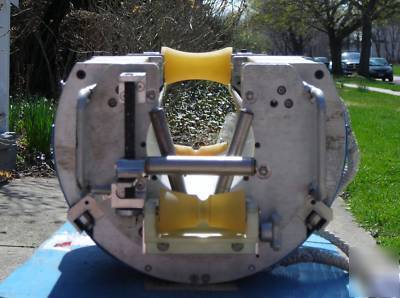

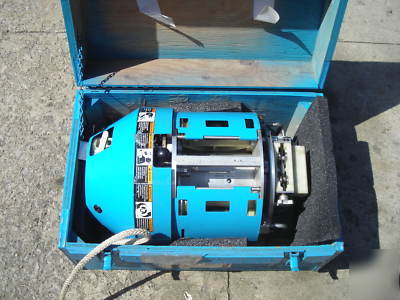

Cable lasher dual spool 4INCH diameter
This is a daul spool lasher was used one time. Bought new for $6895.00
The cable lasher is designed for bare strand and over-lashing or applications. The lasher is wire driven and can facilitate single lashing or double lashing.
physical specs. Height: 10 3/8" (264 mm), length: 20 1/2" (521 mm) width: 13 1/2" (343 mm) weight: 3 lbs. (17kg)
Wire spool geometry & characteristics
SPOOL- 5 1/2" (140 mm) to 6 1/2" (165 mm) Outside diameter
1 5/8" (41 mm) to 7/8 (48 mm) inside diameter
1 11/16" (43 mm) to 1 13/16" (46 mm) thick.
WIRE- .038" ( 1 mm) to .080" (2 mm) wire diameter range
Example: .045" (1.14 mm) diameter wire = 1200 ft. (366 m) on spool
Example: .038" (0.97 mm) diameter wire = 1600ft. (488 m) on spool
Stand sizes- Runs on 1/4" (6mm), 5/16" (8mm), and 3/8" (10mm) diameter strand
Lashing capacity- 4" (102mm) diameter bundle or 3 1/2" (89mm) diameter single cable/duct lasher opening capacity
This is a four inch diameter lasher made for big jobs any quistions feel to email me.
