Despatch LLC1 industrial lab clean process lcc/lcd oven

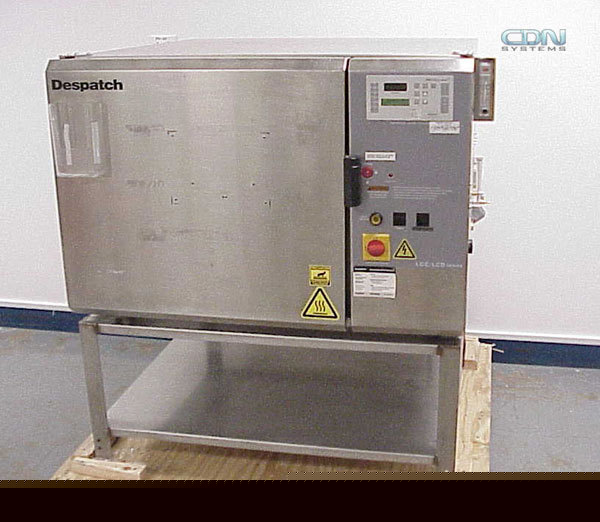

DESPATCH LLC1 Industrial Lab Clean Process LCC/LCD Oven
Despatch's LCC and LCD Stackable Clean Process Ovens have a stainless steel interior and exterior, rugged, programmable process controls and provide a variety of tailored options for your specific needs. For production environment processes where minimal contamination is essential, the LCC and LCD Series ovens offer the highest standards in HEPA filtration. Re-circulated airflow is 100% HEPA filtered for operation at ISO Class 5 (Class 100) or better within the oven chamber. Also available in a non-HEPA filter option LLC and LLD. Typical applications for these ovens include die-bond curing and other semiconductor packaging processes, depyrogenation, sterilization and drying for life sciences. The ovens are SEMI S2 and CE compliant for universal acceptance and configured for 220/240 volts and 50/60 hz.
For production environment processes where minimal contamination is essential, the LCC and LCD Series ovens offer the highest standards in HEPA filtration. Re-circulated airflow is 100% HEPA filtered for operation at ISO Class 5 (Class 100) or better within the oven chamber.
Inert Atmosphere - Allows nitrogen (or other inert gas) to be injected into the chamber to lower the oxygen level to prevent oxidation of products. A water cooling coil is provided for rapid cooling. Control of nitrogen flow and water cooling is programmable through the Protocol Plus controller.
* LCC: 260 C (500 F) maximum temperature
* Lockable Disconnect Switch on the control panel for easy servicing
* Protocol Plus microprocessor control with real time clock makes oven operation simple and flexible Stainless steel interior with all interior seams continuously welded on the insulation side to protect the work chamber from contamination
* Programmable door lock prevents operators from opening oven door when cycle is in process
* Door Interlock switch turns off heater when door is open
* Recirculated airflow is 100% HEPA (High Efficiency Particulate Air) filtered for ISO Class 5 (Class 100) operation throughout the process cycle
* Magnehelic gauge monitors the HEPA filter pressure drop so you know when it is time to replace the filter
* Electric door release for ergonomic operation
* UL & C-UL Listed open control panel
* Chamber Size: 23"W x 20"D x20"H
* Overall Size: 40.5"W x 42.5"D x27"H
* MAX. TEMPERATURE: 260 DEGREES C/500 DEGREES F
* POWER: 240V, 1-PH, 50/60HZ, 27.9 AMPS, 10KA, AIC
* HEATER: 6000 WATTS, 25.0 AMPS
