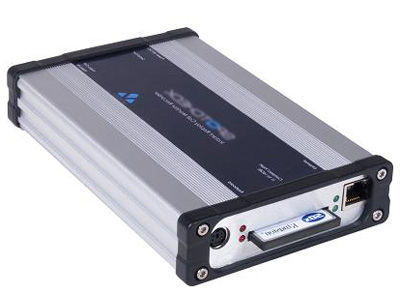

Veracity driveproof vssdp mobile digital recorder dvr
Manufacturer: VERACITY Model/Part #: VSSDP DRIVEPROOF
Veracity Driveproof DSSDP Mobile Digital Video Recorder DVR
DRIVEPROOF is a single-channel digital video recorder for vehicle applications. It is an all-solid-state design, recording to standard Compact Flash (CF) memory cards. With CF cards available up to 16GB, DRIVEPROOF can store over 200 hours of recordings at full-frame resolution (720 x 576) and at 1 fps. The product has been designed for environments where normal hard-disk based DVR's are found to be unreliable, and is ideal for vehicle applications.
Vehicle applications tend to heavily stress normal DVR systems due to very high levels of shock and vibration, but also due to power variations, very noisy power sources, temperature extremes, frequent and often unexpected start-stop cycles, and cooling fan failure due to dust and dirt ingress. Such an environment is totally unsuited to hard disk systems, even if they are shock mounted. It is also unsuited to operating systems which often crash when being frequently re-booted and interrupted. Thus DRIVEPROOF has been designed as a dedicated hardware system for single-channel recording of composite video. There is no operating system, no hard disk and no fans or moving parts of any kind.
DRIVEPROOF is delivered complete with playback software for Windows PCs. This allows full analysis of the recordings including a graphical display of event history and recording times, replay in full-frame or single field mode, duplication of files, burning onto CD and DVD, and archiving of critical files to hard disk for long-term storage.
Super reliability - No hard disk!
Separate 12/24V power supply
All solid-state device No hard disk!
Records onto removable Compact Flash
High-resolution recording (720 x 576)
0.1 fps to 30 fps recording rate
Up to 16GB recording capacity (220 hrs @ 1fps)
Alarm inputs for auto/manual event marking
Playback directly to video monitor or via PC
CF recordings can be played back on PC
Starts recording within 20 seconds of ignition-on
