> New crestron cncs ac current sensor EW0752 120VAC 5A -
New crestron cncs ac current sensor EW0752 120VAC 5A -

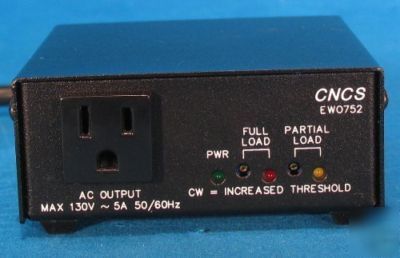

Crestron CNCS AC Current Sensor EW0752 120VAC 5A - NEW !!
(1) 3-prong grounded AC socket, sensed AC power outlet;
Maximum Load: 5 Amps, 130 Volts AC @ 50/60Hz;
Minimum Sensing Load: 0.033 Amps (4 Watts) at 120 Volts AC;
Voltage Range: 90 to 130 Volts AC @ 50/60Hz
(1) Attached cable with grounded AC plug;
(1) 5-pin 5mm detachable terminal block;
* 24+: DC power input, connects to the 24 terminal of the Cresnet bus;
* F: Relay output, latches when Full threshold has been exceeded;
* P: Relay output, latches when Partial threshold has been exceeded;
* C: Floating common for F and P ;
* GND: Ground, connects to the G terminal of the Cresnet bus;Relay outputs rated 1 Amp @ 24 Volts AC/DC, referenced to C ;
The CNCS must not be connected to the Y or Z terminals of the Cresnet Bus
A manual (in pdf format) may be downloaded directly from the manufacturer at:
http:// /downloads/pdf/product_manuals/cncs.pdf
