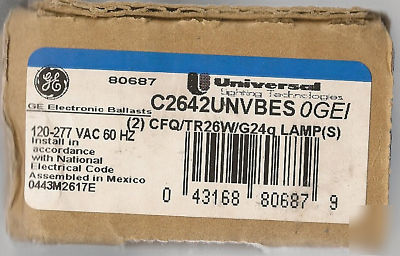

Ge C2642UNVBES electronic ballast
ELECTRONIC BALLAST: HIGH FREQUENCY; PROGRAMMED RAPID START; HPF CIRCUIT; CFQ26W/G24D, CFQ26W/G24Q, CFM26W/GX24Q, CFM32W/GX24Q, CFM42W/GX24Q, CFS38W/GR10Q, FC9T5, FC12T5, FT24W/2G11RS, FT24W/2G10 LAMP; 4 PIN MULTI TUBE/4 PIN 2D/T5 CIRCLINE/4 PIN T5 LONG TWIN TUBE LAMP; 2 LAMP(S); 26 TO 42 W LAMP WATTAGE; INPUT VOLTAGE 120/277 V; INPUT CURRENT 0.25/0.49/0.32/0.42/0.13/0.22/0.37/0.26/0.45 AMPERE AT 120 V, 0.13/0.1/0.16/0.11/0.2 AMPERE AT 277 V; INPUT POWER 28/56/36/48/33/25/42/30/52 W; 60 HZ; 0.98 POWER FACTOR; 1.02/0.98/1/0.98/0.8/1/0.98/0.9/0.85 BALLAST FACTOR; 10 PERCENT MAXIMUM THD; 0 DEG F MINIMUM STARTING TEMPERATURE; PARALLEL WIRING; LEAD CONFIGURATION BOTTOM EXIT STUD; SIZE 4.94 INCH L X 2.31 INCH W X 1 INCH H; APPROVAL UL 935, CSA; TRANSFORMING THE POWER OF LIGHT[R] BRAND; C MODEL
