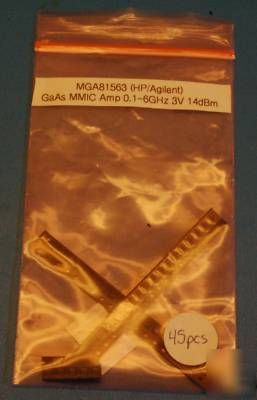

1 x hp/agilent MGA81563 gaas mmic amp 0.1-6GHZ 3V 14DBM
One (1) HP/Agilent MGA81563 GaAs MMIC amplifier with excellent power and low-noise figure for applications from 0.1 to 6GHz. Amplifier output is matched to 50 across the entire bandwidth range (a series inductor can be added to the input to improve the input match below 4GHz).
* Device current: 31mA to 51mA (42mA typ)
* Noise figure (in 50 system): 2.7 @ 3.0GHz
* Gain (in 50 system): 11.8 @ 3.0GHz
* Operating temperature: -65degC to 150degC
Download datasheet here: MGA81563.pdf.
