Wilcom FM1318 optical power meter for fttx applications

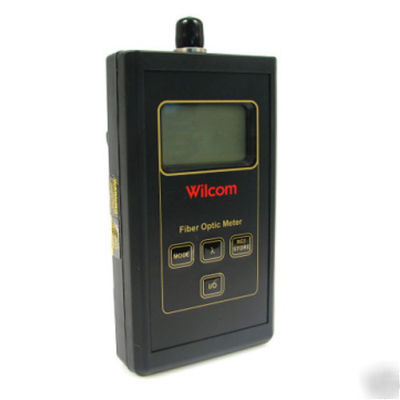

Wilcom FM1318 Optical Power Meter For FTTx Applications New
Model/Part No:FM1318 Our Item ID: 5499
Wilcom FM1318 Optical Power Meter For FTTx Applications
The FM-1318 FTTX Power Meter is a hand-held, compact, lightweight, and easy-to-use battery powered optical power meter. Together with any of Wilcom's Fiber Sources, this team makes a perfect combination for accurately testing multimode and singlemode optical fiber systems.
Model FM-1318 offers measurements in dBm, dBr, and microwatts. The optical input port on the FM1318 accepts any Wilcom thread-on style adapter caps. Adapter caps are required for operation and must be ordered separately.
The FM-1318 measures optical power from + 5 dBm to -70 dBm with calibrated wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm allowing this unit to test passive optical networks (PONs) at the three main wavelengths recommended by the ITU-T (G.983.3) for use in fiber-to-the-home (FTTH), and fiber-to-the-premise (FTTP) networks. The FM-1318 is also ideal for general singlemode and multimode fiber optic testing.
( +5 dBm to -70 dBm - FM-1318 ) ( +26 dBm to -45 dBm - FM-1318C )
850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
+/- .25dB ( measured at 23 C, 1310nm @ -20dBm)
dBm ( absolute power ), dBr ( relative power ), (wavelength), W ( absolute power in microwatts )
dB reference stored in non-volatile EEPROM
Two (2) AA Alkaline Batteries / (>100 hours continuous use)
Item Tested?: Not Applicable (N/A)Physical Condition: Excellent; Working Condition: Fully Functional3 | 10x 6x4 | 1
