> Simon manostat varistaltic pump model 72-310-000
Simon manostat varistaltic pump model 72-310-000

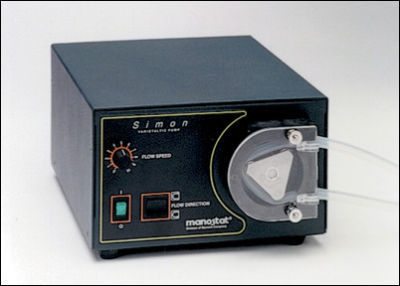

Simon Manostat Varistaltic Pump model 72-310-000
Simon Model 72-310-000 RPM 24-720 Speed control +/- 3 % 1/10 hp IP22 Dimensions L 10 1/4", W 9", H 5 1/8" 12 pounds, 100-130 VAC power These units seems to be the most simple and straight forward to use compared to other models. List Price $1,253.00
This is new/old stock. Unused, but sat on the shelf for several years.
Unit was tested and works perfect.
Ideal for all liquid and gas e.g., transferring chemicals out of carboys, and moving gas through flow systems. Can also be used to generate pressures up to 20 psi. Variable speed control capable of flow rates from 1 ml/minute to 3450 ml/minute. Precise electronic controls with analog infinite flow rate selection adjustment. On/off power switch. Thermal cut-off switch prevents overheating. Reversible speed direction for purging of transfer lines. Self-priming pump head accepts any flexible tubing with 1/16" wall and I.D. 1/32" to 5/16". Dimensions: 26L x 23D x 13H cm. Power: 115 volt, 50/60 Hz. Supplied with 4 ft. of Manosil tubing. Warranty: 2 years. CUL Approved.
Manufacturer: Barnant Company Barrington, IL
This unit is perfect for moving liquids and gasses, transferring chemicals out of carboys, and moving gas through flow systems. It can also be used to generate pressures up to 20 psi. Variable speed control capable of flow rates from 1 ml/minute to 3450 ml/minute. Precise electronic controls with analog allow infinite flow rate selection adjustment. Reversible speed direction for purging of transfer lines. Self-priming pump head accepts any flexible tubing with 1/16" wall and I.D. 1/32" to 5/16". Dimensions: 26L x 23D x 13H cm. Power: 115 volt, 50/60 Hz.
Product Description Simon and Vera Models Variable Flow from 1 ml/min to 3450 ml/min.
Preston Models Variable Flow from 2 ml/min to 5000 ml/min. The SIMON models have an analog single-turn speed control. The VERA models have a precision digital speed control. Preston models have a separate precision digital speed and lighted on/off switch. The on/off switch lets you maintain your flow rate setting when pump is turned off. All models have a lighted on/off switch. The on/off switch lets you maintain your flow rate setting when pump is turned off. Each model is reversible for purging of transfer lines. The 1/10 hp reversible motor has soft start and back EMF for 3% speed control. Stackable painted steel housing is IP22. Removable 6-ft (1.8 m) line cord US standard plug on 115 VAC models, IEC 320/CEE 22 socket on 230 VAC models. All 115 VAC models meet UL and cUL; 230 VAC models meet CE regulations for safety and noise immunity. All drives come complete with pump head and 4-ft silicone tubing (size 17). Remote control capabilities via DB9 female connector on back of drive (VERA models 72-317-000 & 72-317-230 and SIMON models 72-312-000, 72-312-230, Preston models 72-372-000 & 72-372-230 only). Remote Speed control requires 4-20 mA input (< 4 mA stops drive) or 2-10 VDC. DB9 male connector. Wire only the pins needed for remote control. Order catalog No. 7595-45 The chemically-resistant pumphead (molded of glass filled Noryl ) has three stainless rollers (Preston models - three Delrin rollers) and a plexiglass safety cover. Start/stop operation by an open contact closure or open collector driver.Order foot switch model 73-750-000. (Remote models only) Operating temperature 0-40 C.
