Agilent hp 85309A lo/if distribution unit 300 mhz 20GHZ

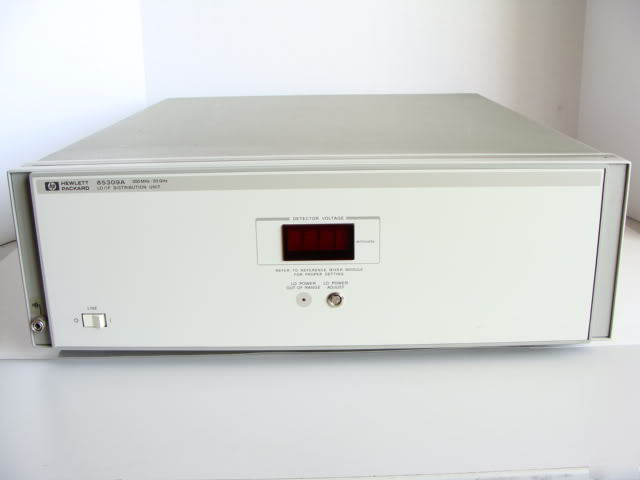

Agilent HP 85309A LO/IF Distribution Unit 300 MHz 20GHz
This is still sold and supported by Agilent with a list price with configured options of $44,833.
* Allows mixers to be located at the antenna under test
* Allows fundamental mixing to 18 GHz for best sensitivity
* Provides best rejection of unwanted spurious signals
* Channel-to-channel isolation of 100 dB
The Agilent 85309A LO/IF distribution unit, together with the 85320A/B mixers, downconvert a microwave signal to an IF signal.
This was the manual listed for this unit on the Agilent site, even though the model number is slightly different, it should be close to correct for this unit.
http://cp.literature.agilent.com/litweb/pdf/85310-90001.pdf
