Velleman 10MHZ handheld oscilliscope/HPS10SE.

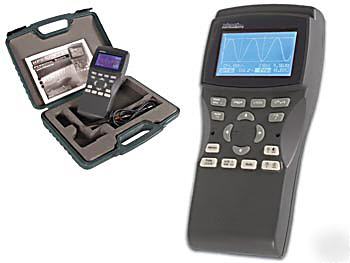

Brand New Velleman HPS10SE Personal Oscilloscope
The velleman personal scope is not a graphical multimeter but a complete portable oscilloscope at the size and cost of a good multimeter. The enormus success of our HPS10 hand held oscilliscope has resulted in the creation of a limited edition using a modern, blue white backlit LCD. Because of its extreme value for money, the personal scope is well suited for educational use in schools and colleges. Suitable for measurements on audio equipment, mains voltage applications, digital signals, all kind of sensors, signal analysis in automotive applications, car stereos, etc. It's full auto setup function, makes measuring waveforms very easy.
* up to 2 Mhz analogue bandwidth
* 5mv to 20v/div in 12 steps
* 200ns to 1 hour/div time base in 32 steps
* trigger mode: run, normal, once, roll
* X and Y position signal shift
* DVM readout with x10 option
* audio power calculation (rms and peak)
* dbm, dbv, DC, true rms measurements
* signal markers for volt and time
* frequency readout (through markers)
* recorder function (roll mode)
* signal storage (2 memories)
* LCD: negative blue 128x64/white backlight
* power supply: 5 x 1.5v AA battery or NICAD/NIMH (not included) or 9VDC/500ma adapter
