Jokab safety eden adam-eva non contact sensor

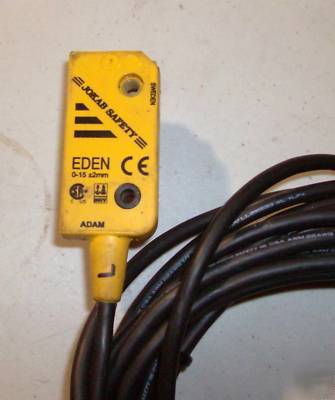

Jokab Safety EDEN Adam-Eva non Contact Sensor
Condition: In used condition. Cabled version. Has only "Adam", no "Eva" :-).
Model: Eden Non-Contact Non-Magnetic Safety Sensor
Eden - Adam and Eva - is a non-contact safety sensor for use on interlocked gates, hatches, etc.
A coded signal is transmitted from the control device Vital or from the safety PLC Pluto via Adam to Eva,
which modifies the signal and sends it back again.
The maximum sensing distance between Adam and Eva is currently 15mm +/- 2 mm.
Up to 30 Edens can be connected in series to Vital and still achieve the same safety level in the safety circuit.
The LED on Adam provides indication of four different conditions, contact/non-contact between Adam and Eva, alignment, and safety status.
The same information is also available via the Adam connection cable.
