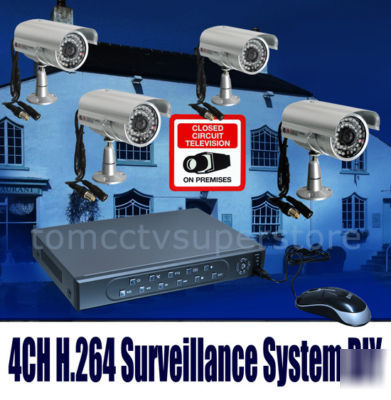

Home security diy kit h.264 4CH net dvr ccd d/n camera
Real time 100/120fps @ CIF resolution
Record Mode: Manual/motion detection/timing
Windows Graphical interface; built-in real-time Linux2.6 operation system
Multiple operation: mouse, remote, panel
High Capability support max. 2Tb hard drive
Supports Double Encode bit network transmission.
Supports remote live viewing via 3G mobile networks (just support Windows OS mobile device)
Waterproof CCD IR camera, providing night-vision capability to cover objects up to 60ft (20meters) distance.
Complete accessories for DIY easily
H.264 4ch Stand Alone DVR 500GB HDD preinstall
Power supply 240/120vAC to 5A 12VDC
420TVL IR Outdoor Camera with brackets (model: JE942)
Technical grade embedded micro controller
Multichannel real-time recording, playback, multi users network ops, simultaneously. USB backup output
16bit true color graphical operation interface, support mouse operation
PAL 625TVL @ 50fps, NTSC525TVL @60fps
PAL, D1(704 x 576), NTSC, D1(704 X 480)
PAL, CIF(352 x 288) @100fps, NTSC CIF(352 x 240)120fps
3ch x25fps CIF, 1ch x 25FPS D1
396 area can be set in each frame, Multilevel sensitivity can be set
Manual/motion detection/timing
Single channel, multi channel (max 4 ch simultaneously)
Time point, calendar, event, channel
Audio: 28.8Mbyte/ hour + video: 25 450 Mbyte/ hour/channel
Network, USB HDD, USB DVD-R/RW
1channel BNC,1.0Vp-p,75 1ch VGA output
RJ45 10M/100M self-adapting Ethernet port, I.E., 200 channel video can be managed by CMS in one system
Stand 6mm (3.6mm, 8mm avail at no extra cost)
1.0V p-p 75 (BNC connector (male))
* Approved warranted items will be replaced/ repaired immediately with the same merchandise, or similar item of our choice.
* Items returned that were abused will have to be approved by our warranty department for exchange. If we no longer carry the item that was returned due to a manufactures defect, we will send a working comparable new or refurbished item of our choice.
* Purchaser assumes all liability for using these products in compliance with all applicable state and federal laws regarding surreptitious audio and video recording or monitoring.
