Fluke 717 100G pressure calibrator like 718 w/warranty

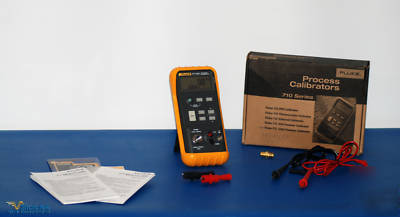

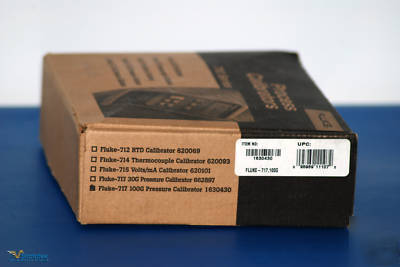

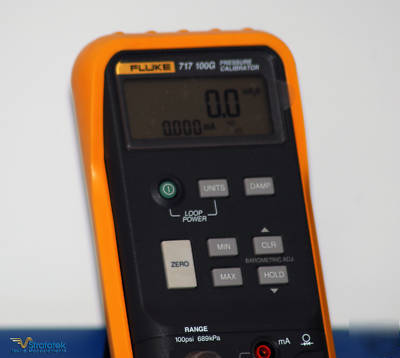

This item is a used Fluke 717 Pressure Calibrator in "like new" condition. Price just reduced! The actual unit is shown in the pictures.
Each calibrator will measure or source one parameter at a time. Additionally, the 717 will simultaneously measure pressure and mA. The 717 will deliver 24 volt loop supply while measuring mA.
* Temperature from Thermocouple output
* Pressure, 0.05% of full scale
* Temperature from RTD output
* Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
* Pressure, 0.05% of full scale with internal 30 psig sensor
* Pressure, 0.05% of full scale with internal 100 psig sensor
* Calibrate P/I transmitters with simultaneous pressure and current measurement
* Measure pressure and vacuum to 0.05 % of full scale with internal 30 psig sensor (717 30G) or internal 100 psig sensor (717 100G)
* 1/8 inch NPT female pressure fitting
* Compatible with non-corrosive gasses and liquids
* Measure pressure to 10,000 psi/69 mPa using one of 29 Fluke 700Pxx Pressure Modules
* Measure mA with 0.025 % accuracy and 0.001 mA resolution
* Select 11 different engineering units
* Zero, min, max, and hold functions
The Fluke 717 RTD Calibrator includes:
* C81Y Protective Yellow Holster with Flex-Stand
* Test Leads and Alligator Clips
* Single 9 V alkaline battery
Any Questions or clarifications...feel free to ask.
