> Electronic timer relay on-delay 24V 24VDC various times
Electronic timer relay on-delay 24V 24VDC various times
SUPPLIED WITH DIN MOUNTING RELAY BASE AND WIRING INSTRUCTIONS
If I don't receive a message requesting an alternative time range then I will send out a 0~30second version.
Output: 4PDT relay [four sets of relay changeover contacts. Volt-free [i.e. contacts are electrically isolated from power supply to timer]. Rating of each switching contact is 3amp resistive load. For loads in excess of 3amp the timer should be used to operate a suitable power-relay or contactor].
Delay period adjustment via dial on front of relay.
Function: Timing commences when power is connected - after the set time period the relay switches all 4 changeover contacts. Relay remains in switched position until power is removed. See diagram below: u represents power to unit and the bottom line represents the action of the relay. Where the unit is operated for less than time T the relay does not operate and when power is removed the timing is reset. [i.e at each operation it will always start the timing from zero.]
Connections: Screw clamp terminals in plug-in base [fingerproof] 2 terminals for power [13 and 14] - 12 for the 4pole changeover output.
Indicators: 2x LEDs:Power ON LED. Relay ON LED.
Fitting: Clip on base for mounting on a length of standard 35mm top hat din rail. Or can be fixed to a panel with two machine screws M3 or M2.5.
Fitting Instructions: Electrical specifications and a numbered terminal layout plan and switching diagram are printed on the side of the timer. The relay base has terminals numbered to correspond with this diagram.
Dimensions [all approximate]: Front [and required cut-out for through panel mounting] 27mm x 20.5mm
Base only: Length: 70mm Width: 30mm Depth 26mm
Height front to back [with base] - 84mm

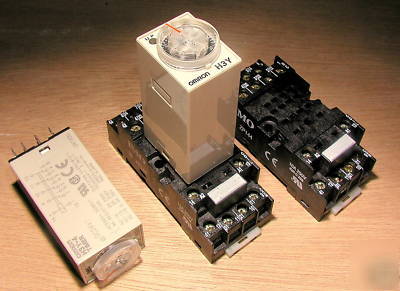

Condition. These timers were removed from a decommisioned system. In near perfect physical/cosmetic condition. [see pic]. All timers fully tested before dispatch. So for all practical purposes - as new.
In the rare instances where there is such a problem I am always more than happy to provide a full refund or replacement goods or where the item has been lost or damaged in transit I will pursue a claim against the carrier. I may in some unusual cases ask for proof of genuine complaint or for the goods to be returned before refund is given. Wherever a replacement is available the goods will be replaced. Returned goods must be received in reasonable condition before such a refund is issued. Misuse of goods or tampering will invalidate any guarantee.
