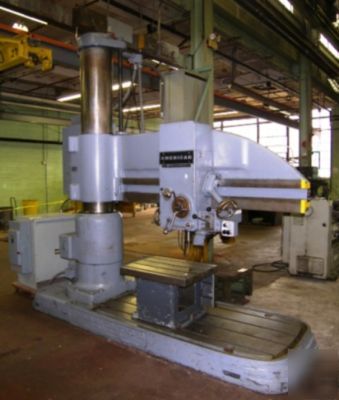

6' 15" american radial arm drill
6' 15" American Radial Arm Drill
Length of Arm ......................... 5'
Diameter of Column .................... 15"
Spindle Speeds (36) ................... 45-2250 RPM
Spindle Feeds (18) .................... .003-.125 IPR
Spindle Taper ......................... #5 MT
Spindle Motor ......................... 15 HP
Distance Spindle to Base (Min/Max) .... 6"-72"
Quill Travel .......................... 18"
Arm Travel on Column .................. 42"
Machine Weight ........................ 17,500 lbs.
