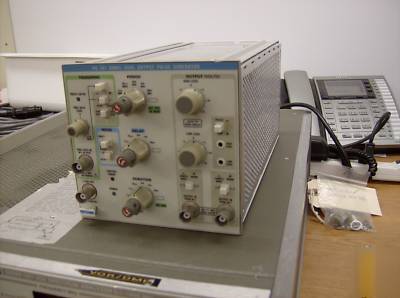

Tektronix pg 507 dual output 50 mhz pulse generator
This makes it far more useful and flexible than just the single pulse generator, since you can have two identical pulse trains on two different outputs and you can synchronize them or make them complementary and inverted. Both outputs are capable of up to 50 MHz repetitions with 3.5-ns rise/fall times, normal or complement output. Both outputs are +/- level adjustable in high and low levels.
Switch adjustable periods, delays and durations are provided with separate front panel controls. Trigger levels are available for both input and output uses and are input level adjustable to allow an external signal to act as the trigger input. This unit is in full working order and ready to plug into a TM 500 cabinet.
