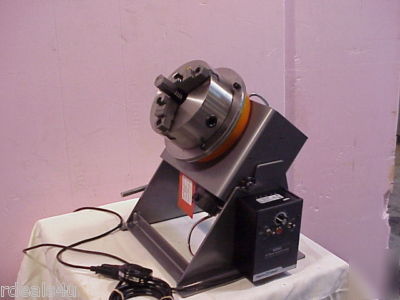

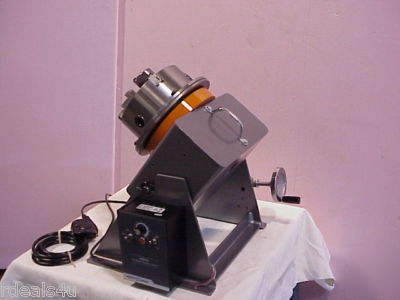

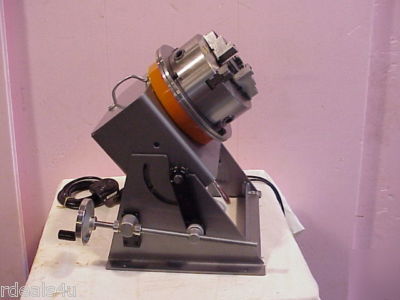

New welding positioner wp-2SC cnc 8" chuck 2" hole usa
ALMOST TOO GOOD TO WELD ON, TRULY A FIRST CLASS MACHINE.
LAST ONE IN STOCK!!!!!!!!!!!!!!!!!!!!!!!
This is our most popular chuck positioner, with all the features, infinate angular adjustment 0-90.
We are Midwestern Wisconsin welding folks, building honest good products for the American market, we use our products in our shop everyday.

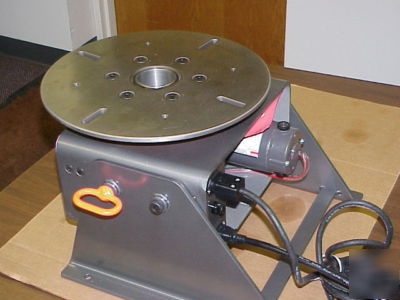

WP-2 Welding Positioner Hollow Spindle, Chuck Option:
Required power..................115 VOLT AC POWER
Weight capacity.................200# balanced/centered vertical
50# balanced at 90 degrees, 2 from C/L
Table...........................10 diameter with 3/8" slots, 5/16" thick, steel
Table tilt......................0-90 degree Trunnion pivot w/screw adjustment
Motor...........................90 volt PM DC motor
Control.........................SCR High Frequency tolerant control
Power on light, fused
Forward/Reverse toggle on Control
Speed ranges offered............Model #WP-2, 0-4 RPM 102 lbs. inch torque
Ground current..................200 Amps DC direct table contact
