Machine Parts For Reuse Newsgroup Discussion Forum   >   Small Size Parts   >   Used   >   Electrical   >   St. Louis   >   Movin cool LA84000-2300 classic plus 26 24,000 btu r-22

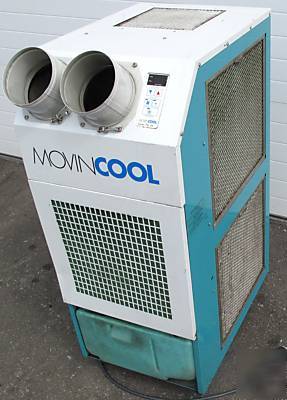

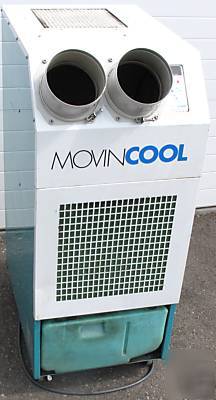

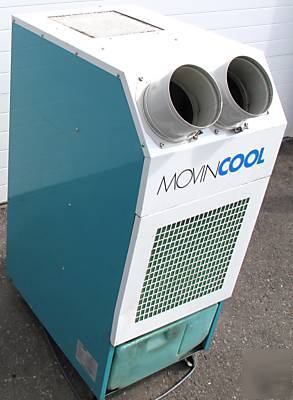

Movin cool LA84000-2300 classic plus 26 24,000 btu r-22


Used in A+ Components Packaging

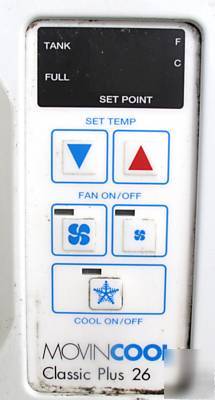

Thermostat Control- Electronic
Voltage Requirement-1 Phase 208/230 Volts
Total Power Consumption- 3.1 Kw
Current Consumption- 15.6/14 Amps
Recommended Fuse Size- 20 Amps
Motor Output-High/Low- 0.55/0.38 kW
Max. Air Flow - high/low- 708/600 CFM
Max. External Static Pressure- 0.54 IWG
Max. Air Flow - high/low- 1680/1460 CFM
Max. External Static Pressure- 0.25 IWG
Condensate Tank Capacity- 5 Gallon
Min. - Max. (@ 50% RH)- 70 113 F
With Condenser Duct - high/low- 66/64 dB(A)
Without Condenser Duct - high/low- 69/67 dB(A)
Please contact me with any questions you may have:
