New jet 5 hp 1-phase industrial shaper 708326

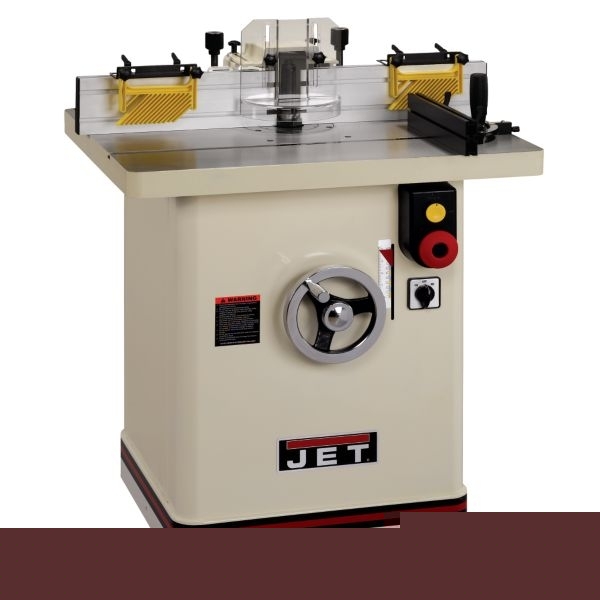

JET JWS-35X5-1, 5 HP 1-Phase Industrial Shaper
* Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
* Powerful 5HP, 1Ph motor with magnetic controls
* Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
* Large 26-3/4" X 32-1/4" precision ground cast iron table provides a durable work area, predrilled for power feeder
* Poly-V-belt transfers maximum power to the spindle
* Starting Pins for irregular shaping
* Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
* Extra-large chrome hand wheel is conveniently located for fast, easy and accurate spindle height adjustments
* Reversible spindle speeds for diverse shaping jobs
* 4" Dust port built into fence for convenient hookup to any dust collection system
Motor 5 HP, 1 Ph 230V Spindle Speed 4000, 6000, 8000, 10,000 RPM Table Height 33-1/4" Fence Size 4-3/4" X 16" Router Bit Collet Diameter 1/4", 1/2" (optional) Spindle Capacity Under Nut 4" Spindle Travel 4" Table Insert Opening Diameter 2-5/8", 4-7/8" Table Inserts 2 Amps 17 Amps Digital Readouts n.a. Dust Collection Minimum CFM Required 400 CFM Fence Travel (Major And Minor) 4", 1" Maximum Diameter Cutter Above/Below Table 7-1/2" (Above); 6" (Below) Reversible Yes Spindle Diameter 3/4" Dust Port Diameter (OD) 4" Electrical Controls - Magnetic Starter Yes Prewired 230V Overall Dimensions 30" x 41" (L x H) Net Weight 473 lbs.
* 5 HP 1-Phase Industrial Shaper - 708326
