22TON strippit nisshinbo spm 500 cnc turret punch press

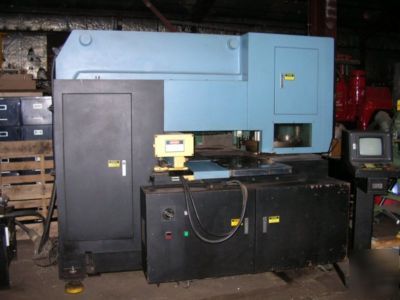

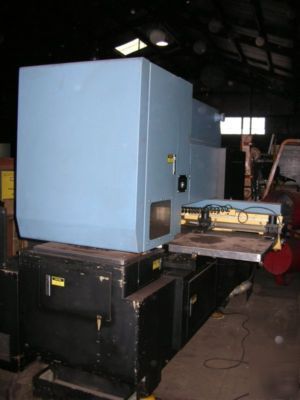

22 TON STRIPPIT NISSHINBO MODEL SPM 500 CNC TURRET PUNCH
CATALOG 118731-100, MANUFACTURED 1989
MATERIAL THICKNESS, MAX. - .250" MILD STEEL
HOLE CAPACITY IN 14 GA. MILD STEEL - 3.500" DIA.
HOLE CAPACITY IN .250" MILD STEEL - 1.125" DIA.

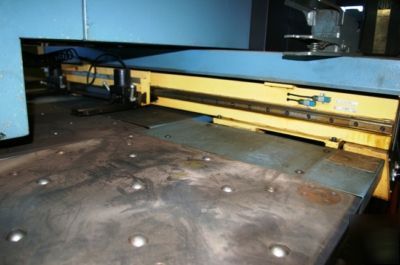

WORKPIECE SIZE MAX., STANDARD - 39.375" X 19.7"
WORKPIECE SIZE MAX., W/PROGRESSIVE MOVE - 78.750" X 19.7"

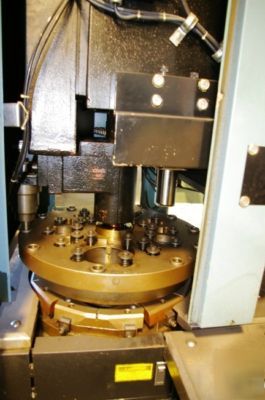

TURRET TOOLING TYPE - AMADA THICK STYLE
TURRET CONFIGURATION - (2) 3-1/2", (4) 1-1/4", (4) 1/2"
PRODUCTION RATE - 120 HPM, MILD STEEL USING 1" PUNCH
REXROTH HYDRAULIC UNIT & MOTOR - 5 HP 208/230/460/3/60, 1740 RPM

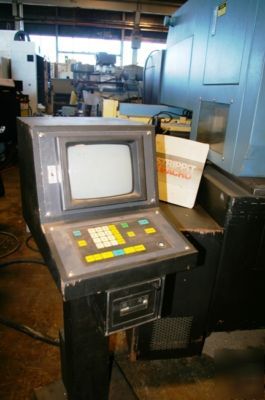

NISSHINBO CNC CONTROL USING G CODES
DIMENSIONS (IN.): 88 X 67 X 75
