New weller WD1002 85W/120V digital soldering station

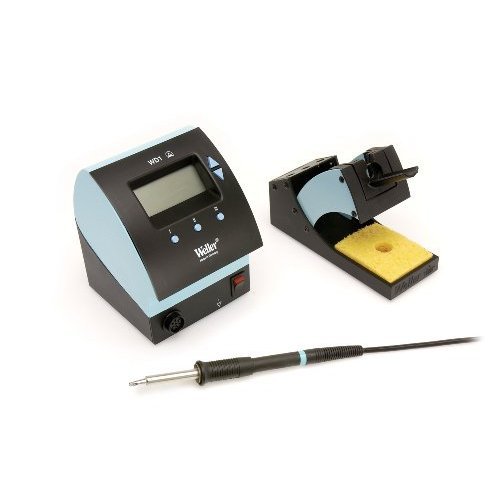

Weller WD1002 85w/120v Digital Soldering Station w/WP80 Pencil
The Weller WD1002 is a digital 85w/120v single channel soldering power station unit that comes with the WP80 (80w) soldering pencil and stand (WDH10). This unit features three freely programmable temperature preset buttons that allow for quick and easy temperature changes. Temperature range is from 150 Degree F to 850 Degree F. The large high contrast LCD display provides more information at a glance. Power station has F/ C switching allowing the temperature display to read in either F or C. Unit also features setback time and auto/off time programming of 1-99 minutes before temperature settings go back to idle mode, or station automatically powers down. In addition, unit features temperature lockout so supervisor can easily set a temperature that cannot be changed by the operator. As well as, temperature standby which allows the selection of a desired setback temperature down to 200 Degree F. And, temperature offset which allows the display temperature to be adjusted /- 72 Degree F when working with higher mass tips, where the temperature reading can be affected by the mass of the tip. The WP80 soldering pencil allows rapid production when working with lead-free solder, high mass components, and other demanding applications. The special silver spool heating element provides low thermal loss and fast recovery. The soldering pencil stand (WDH10) has 4-position tilt. ESD safe to protect sensitive components. Made in Germany.
* Modern LCD technology gives the user critical information at a glance
* F/C switching which allows the unit to either read temperatures in F or C
* Comes with WP80 (80w) soldering pencil and stand (WDH10)
* 3 "radio buttons" allows pre-set of frequently used temp settings
* Setback, lockout, temp. window, F/C switching, standby, auto-off time
