New scherr tumico s-t 14" optical comparator

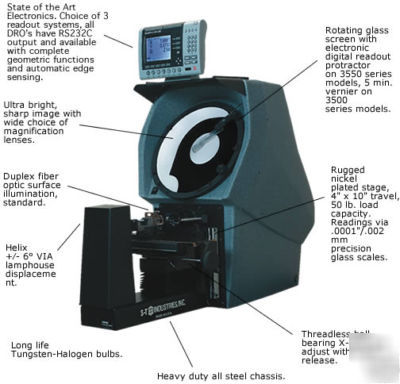

New Scherr - Tumico "3550 Series 14" Optical Comparator with digital protractor. Includes optional 10X lens and base. Made in the U.S.A.
Measuring Travel 10" (250 mm) horizontal (X) 4" (100 mm) vertical (Y) 2.5" (60 mm) focus with Quick Release on X-Axis
Precision Measuring Stage 5" x 16" (125 x 400 mm) nickel-plated top plate
Digital Screen Protractor On 3550 Series angular readings to 1 minute of arc
Duplex Fiber Optic Surface Illumination 14" Frosted Glass Screen with 30, 60, and 90 degree cross lines
Helix - + -6 via lamphouse displacement
3500 Line Drawing/Specifications
Steel construction with Polyethylene body
50 lb. (22 kg.) allowable workload on stages
Electrical: 115/220 Volts, 50-60 Hz, Single Phase, 2.0 Amp
Approx. Weight: Net 170 lbs. (75 kg) - Crated 200 lbs. (90 kg)
