> Gonset g-50 manual with 23" schematic »r²
Gonset g-50 manual with 23" schematic »r²

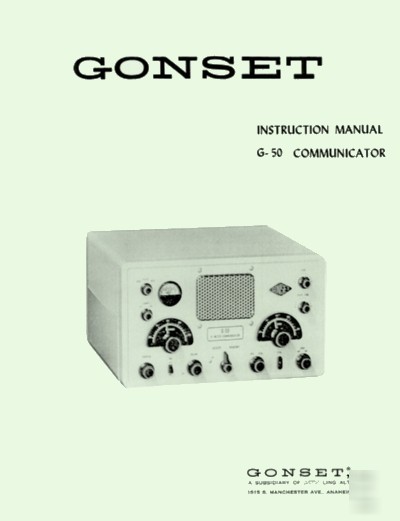

This is a digitally copied and enhanced manual for the Gonset G-50. It has been copied from an original and is clear, clean, and easy to read. It is printed on premium 24# paper with heavy covers and bound with a plastic comb. No more struggling with unreadable photocopies!
The Gonset G-50 manual is 8 1/2" X 11" with about 22 pages plus a large one piece 11" X 23" schematic. Topics covered include: general, installation, tube complement, controls, switch selection, squelch operation, receiver audio system, transmitter audio system, block diagram, circuit details, trouble shooting and alignment, parts list, and schematic.
