Nsk e 3000 series brushless motor spindle EM25-S6000

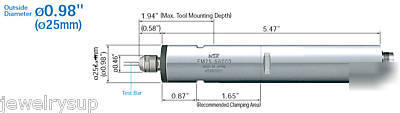

BRUSHLESS MOTOR SPINDLE EM25-S6000 0.98" (25mm)
The E3000 Series is capable of up to 60,000 min-1(rpm) and employs a high-speed, ultra-quiet brushless motor.
High-performance system and state of the art design allows high-speed machining and a variety of safety functions.
Designed for high speed milling and drilling, etc on CNC lathes and special purpose machines. Compact size makes it very easy to incorporate into machine design.
-EM25-S6000 Brushless Motor Spindle; Collet Nut (CHN-A) : Provided
Wrench (8 x 5) , (9 x 11) 1pc. each
*Collet and motor cord sold separately.
EM25-S6000 Brushless Motor Spindle Specifications
Maximum allowable motor speed for the spindle 60,000 min-1(rpm)
Spindle Accuracy Within 1 m
Maximum Motor Speed 60,000 min-1(rpm)
The maximum motor speed 60,000 min-1(rpm) is realized by using high performance brushless motor and ceramic bearings.
Air-cooled motor uses a small volume of air (1.0 CFM) to minimize heat buildup and allow continuous operation.
Air pressure required is 36-44 PSI.
Spindle Accuracy is within 1 m (TIR).
E3000 series uses a short body that is hardened and precision ground for excellent durability.
Motor Connector Attaches Directly to the Back of the Motor / Spindle.
Simple screw-lock connector makes changing motors extremely easy. Electric and Air feed incorporated into a single connector.
This switch activates the centering mode, which maintains a constant 500 min-1(rpm) spindle speed for centering the tool.
