New explosion proof rotating red light 121X-120R 120V

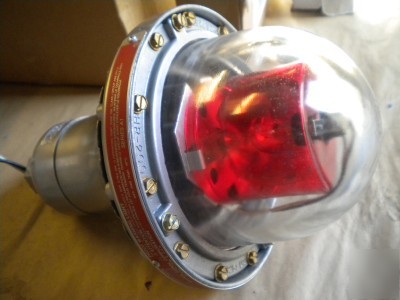

NEW EXPLOSION PROOF ROTATING RED LIGHT 121X-120R 120V
Federal Signal's Model 121X rotating light flashes 90 times per minute and produces a 360 visual signal. This explosion proof light has an incandescent lamp and is available in five lens colors amber, blue, clear, green and red.
This corrosion resistant unit's copper free aluminum housing is finished with a powder epoxy. All exposed hardware is constructed of 316 grade stainless steel.
The 121X uses a synchronous motor to drive a parabolic reflector around an incandescent lamp. This results in a 360 rotating beam which is concentrated in a horizontal plane.
The 121X features a spring clip mounted lens for quick access when inspecting or relamping. A pendant mount is supplied, and a ceiling mount and 90 wall mount are available options. Installation is simple; with the mounting box in place, the fixture is threaded onto the mounting box, making the electrical connection. Electrical continuity is made when five threads are engaged.
Federal Signal's rugged 121X Warning Light is designed for explosion proof applications and/or corrosive environments. It is ideal for use in indoor and outdoor areas such as oil rigs, mines, refineries, and chemical plants.
For more info go to: http:// /pdf/CS_121x.pdf
Instruction sheet go to: http:// /pdf/IS_121X.pdf
