1997 hybco form/tool/drill/cutter grinder

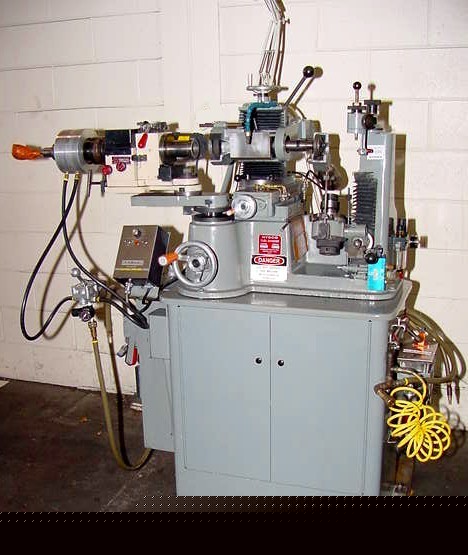

1997 HYBCO FORM/TOOL/DRILL/CUTTER GRINDER
HYBCO UNIVERSAL TOOL & CUTTER GRINDER
"A COMPLETE TOOL RESHARPENING SYSTEM FOR DRILL POINTS,
TAPS, STEP DRILLS, REAMERS, COUNTER SINKS, END MILLS,
MACHINE MODEL No.: 7000 S/N: 8086 NEW: 1997
Various drill points that are generated:
(Included Angles of 60-180 Degrees)
Camfer Angles are quickly resharpened and can be
modified to meet users requirements:
New design grinding wheel spindle adds rigidity and
versatility to Hybco T & C Grinder
Double end spindle mounted on four "O" precision bearings
3" taper/ft. both ends. Takes standard mounting hub
-Tilt adjustment 20 either side of horizontal
-Pivot 90 either side of "O".
Gives unique operator overview on flute sharpening
The tilting spindle enables the Model 6000 fixture to be
used as a dividing head. The axial and oscillatory motions
are simply locked out. A 12 notch index plate is provided
For sharpening the end teeth on milling cutters, etc.
#6000 MOTORIZED FIXTURE (S/N: DG-121)
The Model 6000 drill point grinding attachment provides
circular, axial and oscillatory motions that operate
separately or together to generate the geometry needed to
re-sharpen and or produce special drill points as well as
re-sharpen other types of face cutting tools such as taps,
step drills, counter sinks, reamers and core drills.
Some of the unique features Hybco Model 6000 are:
-The spindle has a 5C-collet cavity.
-A dial indicator shows the exact amount of adjustable
axial caming motion, eliminating the need for offset
Tool projections for diameter changes.
-Adjustable height timing gauge for chisel point angle
-The spindle is mounted on special Timken "0" precision
-The attachment features a D.C. 1/40 HP motor drive package
featuring quick acting engagement with toggle clamp.
-The oscillating motion is generated from a drive gear
mounted on the spindle which in turn drives a circular
turning crank arm that is attached to the lever arm. This
motion is engaged by inserting a "T" handle taper end
wrench to lock the lever arm into place.
-The axial motion is on preloaded cross roller bearings
-The Model 6000 fixture can be mounted on many different
makes of tool and cutter grinders.
#6000 Workhead w/"BALDOR" DC Motor Adjustable Speed Drive
& "DUNHAM" 5C Pneumatic Coller Closer
Pneumatic Vertical Slide for Fluting Head w/5" Travel
"KOOL MIST" Air Powered Coolant System
3/4 H.P./3/60/230-460 Volt Grinding Wheelhead Motor
Presently Wired for 3/60/460 Volt Operation
