Laser module 635NM apc 3.5MW 3 to 6 vdc oem high volume

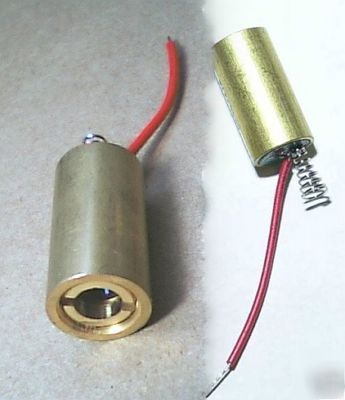

This is a NEW Laser Module, 635nm - Brightest Red Wavelength.
* Just under 20 mm long (brass housing length).
* APC (Automatic Power Control) driver circuit inside.
* Operates from 3 to 6 volts (actually will run at under 3 volts).
* Case and Red lead are positive (+) connections, Spring is negative (-) connection.
* Don't let the odd connections scare you. This is easy to hook up and is a very bright module. Solder a black wire to the spring, and you have a standard wired module.
* Custom made for Sporting Goods Project. NEW. We have just under 1,000 units in Stock in California.
* Single item price is normally about $44 for this type of module. Our loss is your gain. Selling at about 25% of normal cost.
* Bright 635 nm beam, the brightest red wavelength.
* 3.5 mW of laser power output, Class IIIa.
* Includes lead, and spring electrical contacts.
* Please see the data sheet for more details:http:// /html/LQA-K.pdf
Easy hook- up- just add 3 volts DC and go. Will produce a dot that can be projected across the room, down the street, etc.
