Disk wiper/cloner - works with hd's in digital copiers

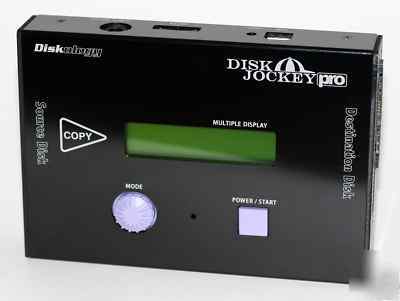

DJ Pro IT Edition - Will Clone (copy) or Wipe (erase) any Hard Drive in any Printer / Copier - STAND ALONE UNIT, NO PC NEEDED
If you need to clone the drive in your Copier/Printer, just hook it up and the DJ Pro will do a bit-level (forensic grade) copy of all areas of the disk.
It does a disk-to-disk exact copy. For peace of mind, when the old HD dies, just pop in the new one and you're up and running -Questions? Call or Email
Or... do you need to completely sanitize the old drive? It will do a 'wipe' - that is, not only does it erase the drive, but it writes zero's to every sector. That's right, no un-erase tool will bring data back after that.
The New Model Features a Smaller Footprint, Lighter Weight, More Functions!
The DJ IT - The information Technology Professional will find it useful when they need to make an absolute, quick, and sure image or copy of a drive before they begin with:
* Malware infection Recovery
* Major OS upgrade or Rollback
* Peace-of-mind backup in case of disaster
The DJ Pro fits the bill when you need a Portable, Easy to use, Low cost, Reliable tool to help you with IDE and SATA drives of all sizes.
* Does 'Media Wipe' to properly prepare forensic media for imaging (writes 0's to all sectors)
* Option can also do a Department of Defense (DoD) 7-pass secure erase
* The ability to copy the Host Protected Area (HPA) and Drive Configuration Overlay (DCO) areas of a hard disk drive.
* Can be used as purely a USB 2.0 write blocking device. Attach a target drive to the DJ and connect the DJ to your Windows or Macintosh computer in write protect mode for data searches and investigation of a target drive.
The All New DJ Pro IT Features:
* New - LCD Display shows you progress, errors and provides you with easy access to a variety of options
* New - Features built-in SATA adapters, an $80 value!
* New - The ability to copy Compact Flash cards (Disk Jockey Pro to CF adapter sold separately)
* New - The Disk Jockey Pro can now copy Older Non-UDMA IDE Drives such as used in Vending machines and older, dated technology.
* New - Fast, block-level to block-level hard disk copies. NOW SPEEDS UP TO 4GB/min
* New - Partition Copy: Set up a smaller, dedicated partition on a hard drive and the DJ will only copy that partition creating an even faster copy.
* Mount one or two hard disks to the desktop of your Macintosh or Windows computer through USB 2.0
* Sector by sector disk verification of copied data Hard disk read test
* Quick, one-pass hard disk data erase
* DoD x 7 pass erase for ultimate security
* Use stand-alone or connected to your PC or Macintosh
* Includes 2.5", 3.5" & 1 - 12" cables, as well as USB cable and electrostatic mats, no need for laptop adapters
The New DJ Pro is Small, Compact and Ultra Portable. The DJ Pro is 8 Tools in One . This includes Modes: Standard, Standard (WP), Disk Copy, Disk Copy (HPA), Disk Compare, Verify Check, Data Erase X1, Data Erase DoD (7x Erase) and options. Copy to ANY DRIVE of the same size or larger than the drive you're copying from. DJ Pro checks disks for bad blocks and erases disks in 2 modes ("Data Erase X1" is single pass, "Data Erase DoD" is Dept. of Defense Approved 7x Erase. Can image at 4GB/minute copy speed. That's 16 times faster than software copy tools. This unit is brand new with all the cabling (USB 2.0 as well) for connecting to Any PC or Mac. The New DJ Pro comes complete with 3.5 inch cables and 2.5 inch cables (for Laptop drives) at No Additional Charge!
The DJ Pro is compatible with All International Power requirements.
* DJ Pro IT Edition with 1 Year Warranty.
* 2.5 HDD flat cable x 2 (for laptop type drives)
* 3.5 HDD flat cable x 2 (standard type desktop drives)
* Built-in Serial ATA (SATA)
* Custom electrostatic mat x2
* Users guide or quickstart guide
The DJ Pro comes complete with a 1 Year Warranty!
OPTIONS The DJ comes with a variety of options to help you customize your user experience. A detailed table of options can be found on our website, however the following is a very brief description of the options available. If you are unfamiliar with what settings to use, please keep the Default Factory Settings in place.
Buzzer Turn on/off the audible alarm as well as the buzzer heard when the POWER/START button is pressed on or off.
Max XFR Mode Sets the maximum data transfer speed. NOTE- The actual data transfer rate will depend on the HDD.
Auto Skip Allows the DJ to skip bad sectors and continue with the operation. HINT This setting is useful when attempting to copy parts of a drive even through part of the disk may be damaged.
Retry Count Determines the number of retry attempts when an error is detected. Default is 5, setting goes to 99.
Timeout Retry Selects/deselects whether or not the DJ will attempt a retry when a timeout is detected.
CRC Error Retry Sets whether or not an automatic retry is attempted with a CRC Error is detected.
Auto Shutdown Sets whether or not power is turned off at the end of an operation. If OFF, the display shows the details of the operation after completed until the POWER/START button is turned off.
Timeout Period Allows setting the amount of time before reporting a timeout.
Spin-up Gap Time Allows setting the time before the HDD spindle motor begins spinning. This can be useful with working with large capacity drives that require a large power load on the DJF.
Scroll Speed Sets the display scroll speed.
Buzzer Mode Select from three different buzzer sounds.
Return to Menu Returns to the main menu.
* Dimensions : W146mm x D102mm x H25.4MM
* Optimal Operating Temperature/Humidity : Temp 5~35 degrees C., Humidity 20~80% (RH non-condensing), and within the specified environment limits of the attached PC
NOTE: There are no hard disks included with the DJ PRO.
Supported Windows Operating Systems
* Windows 98 SE, Windows 2000, Windows Me, Windows XP, Windows Vista, Windows 7
* Windows 3.1, Windows 95, Windows NT, Windows 98 Original Edition are not supported (USB Mode not supported that is, but can certainly image and clone these operating systems' drives).
* Diskology can not guarantee that the Disk Jockey will work in all environments. (USB Mode that is, but can certainly image and clone these operating systems' drives). Please contact ****@diskology.com for questions concerning compatibility.
* USB 1.1 Connection (Data transfer limited to USB 1.1 specification)
* Pentium 300MHz with at least 128MB RAM
* For any driver or bundled application installation a CD-ROM or floppy disk drive may be neccessary
* Windows 98 SE/Windows Me/Windows 2000/Windows XP/Windows Vista/ Windows 7/Mac OS X, Panther, Tiger, Leopard, Snow Leopard.
