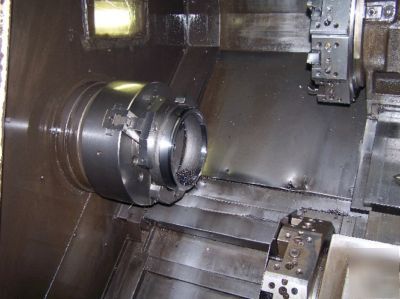

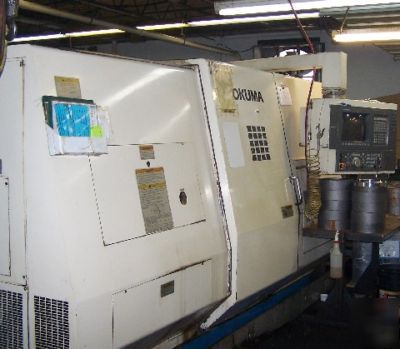

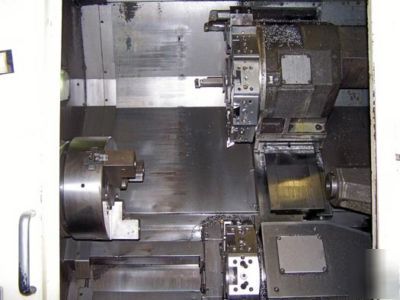

Okuma lu-25 4 axis cnc turning center 15" chuck
OKUMA LU-25 2SC CNC TURNING CENTER
X AXIS TRAVEL (LOWER TURRET) 11.81"
X AXIS TRAVEL (UPPER TURRET) 7.68"
Z AXIS TRAVEL (UPPER TURRET) 28.54"
Z AXIS TRAVEL (LOWER TURRET) 25.98"
RAPID TRAVERSE RATE X/Z AXIS 472/630 IPM
TURRET CAPACITY UPPER 12 POSITIONS
TURRET CAPACITY LOWER 10 POSITIONS
APPROX. DIMENSIONS 150" x 88" 85"

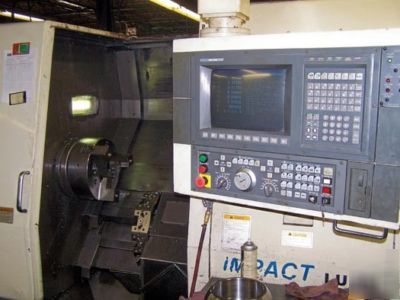

OSP-7000L CNC CONTROL WITH 14" LCD SCREEN
HYDRAULIC TAILSTOCK, RIGHT SIDE LIFT-UP CHIP CONVEYOR
FULLY ENCLOSED GUARDING, COOLANT TANK & PUMP
