> Nitek VB43ATF video balun utp power and ptz combiner

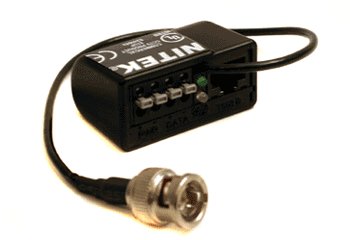

Nitek VB43ATF video balun utp power and ptz combiner
UTPLinks and XP Series - UTPLinks Nitek VB43ATF
-Brand new in original packaging
Nitek VB43ATF Video Balun Combiners for twisted pair up to 750 feet (228 meters) in conventional UTP applications, 100 meters in TIA/EIA 568 applications. The VB43ATF is a unique transmission device which provides an economical means of sending video, camera power and 2 wire control signals over a standard Category 5 cable. Video is sent over one pair, 2 wire control signals over a second pair and camera power is sent over the two remaining pairs. A mini-coax pigtail with male BNC is used on the VB43ATF.
* Intelligent light link indication
* Superior video over ordinary twisted pair cable
* Quick connect screwless terminals
* Immunity to noise and interference
* Rugged ABS flame-retardant casing
* Built-in surge suppression
* Passive devices - do not require power
* Convenient connection to Category 5 cable for video power and 2 wire control signals
* Easier to install than coax
