> Ftg-3 light-sensitive phototransistor (ussr-81). qty=3
Ftg-3 light-sensitive phototransistor (ussr-81). qty=3

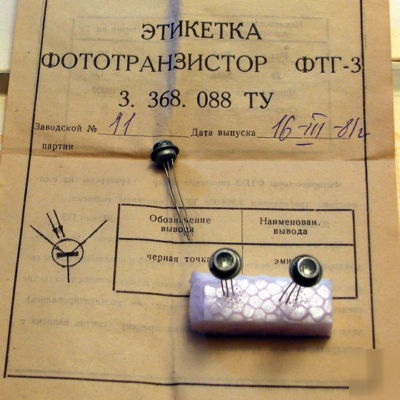

FTG-3 Light-sensitive element - Phototransistor (USSR-1981). QTY=3
The main parameters at 20 5 C
The area of the photo-sensitive element, 3 mm2
Spectral characteristics of delta lambda, 0.4 ... 1.8 mkm
The maximum spectral characteristics of delta lambda, max, 1.5 ... 1.55 mkm
Operating voltage Ur, 5 ... 10 V
Dark current It, not more than 60 uA
Integral current sensitivity S int, not less than 1 uA / Lm
Pulse time constant (Ti) is not more than (2 ... 10) e, 5 sec
Weight not more than 1.8 grams
