Energy saving monitor power outlet controller #610

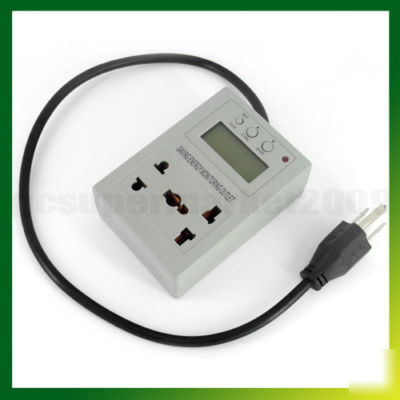

Saving Energy Usage Monitor Power Outlet Controller #610
* Saving Energy Usage Monitor Power Outlet Controller #610
The PMM1106 outlet is to measure the electric power consumption and can be an electrical energy-saving evaluation.It has an accuracy of 1.0(that is in error within 1%)for any load(resistive capcitive or inductive load).It is the ideal load test evaluation and energy-saving tool both home and office.LCD monitor display the total electricity consumption frane when power on.Special ant-lightning desing.
Plug in/out voltage:110VAC
Plug in/out operation current/power:6A/700W
Start current or power: 2mA / 0.44W
Accuracy Class:1.0 Class 1%
Dimensions:100mm x 70mm x37mm
Operation temperature:0 C~50 C
Anti-submarine dynamic function:Yes
History data memory(Memory blackout):Yes
Measurement Industry standard:IEC1036
Press the left-key(SET/CLR)for more than 5 seconds, the internal records of all data will be cleared.
Press the right-key(DISP) release it to display the internal data.The cumulative electricity consumption is followed by dynamic average power,the electricity in the past hour,the electricity consumption in the past day,the electricity consumption in the past month.The items follow each other in rotation.
Dynamic average power can be measured 4 seconds after power on,before that data is not correct.
The product is only applicable indoor.
This product is not waterproof.
Don't touch any part of the metal socket.
