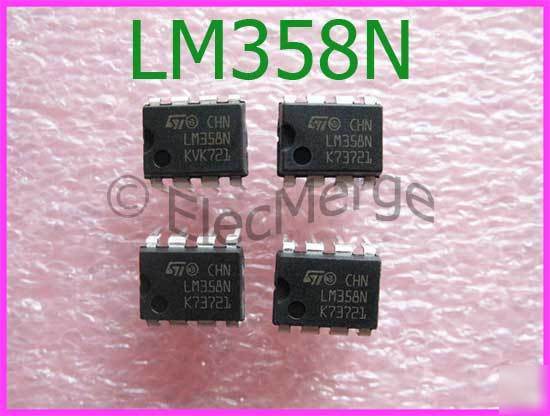

> 5X LM358N LM358 low power dual bipolar op amp 8 pin dip
5X LM358N LM358 low power dual bipolar op amp 8 pin dip
LM358 LOW POWER DUAL AMPLIFIER
LM358N Low Power Dual Operational Amplifier
These circuits consist of two independent, high gain, internally frequency compensated which were designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, dc gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard +5V which is used in logic systems and will easily provide the required interface electronics without requiring any additional power supply. In the linear mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.
* 5 x LM358N LOW POWER DUAL BIPOLAR OP-AMP
LM358 Datasheet and Schematic
