Kl-280 fiber fusion splicer & cleaver & free shipping

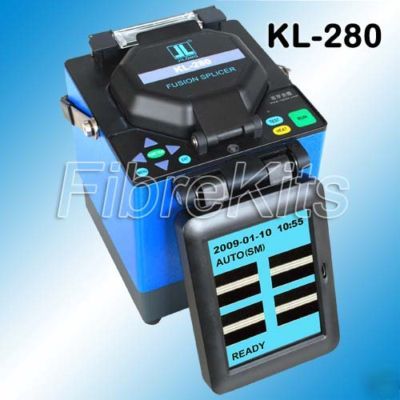

KL-280 Single Fiber Fusion Splicer with Cleaver
Fiber core can be display clearly
SingleX or Y view and X & Y view simultaneously
Auto check quality of cleaved end face
Auto select best splicing program
9 seconds splice time and 30 seconds heat time
5 inch color LCD monitor with clear digital image display
Fusion Splicer / AC Adapter / AC Power Cable / Internal Battery / Power Charger / Spare electrodes / Cooling Tray / Manual Instruction / Carrying Case / Precision Cleaver / Fiber Optic Stripper
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
8-16mm(Coating diameter: 250um)
16mm(Coating diameter: 250 - 1000um)
Typical 9 sec,with standard SM fiber
60mm, 40mm and a series of micro sleeves
5000 results,3 parameter per result
Fiber display and magnification
400X(X or Y view),200X(X and Y view)
No.of splice/heating with battery
Typical 130 cycles (splice/tube heat) with inner Li-battery
0 to 5000m above sea level, 0 to 95%RH and -10 to 50 centigrade ,respectively,Max. wind velocity of 15m/s
AC 100-240V with AC adapter; inner Li-battery(6600mAH)
150mm(L) x150mm (W) x160mm (H)
