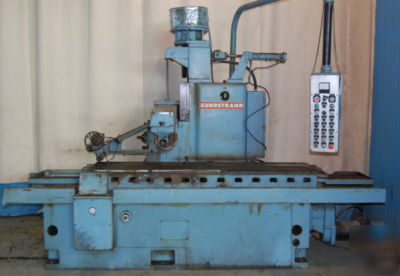

#C2 sundstrand "rigidmill" horiz-spdl prod mill #19468
HORIZONTAL-SPINDLE PRODUCTION MILL
New 1971, Serial No C2-90, Model C2,
Rise And Fall Head Travel (Tracer Controlled)
Table Dimensions (Overall) W x L........ 18" x 78"
Table Longitudinal Travel (X-Axis)...... 48"
Quill Cross Adjustment (Z-Axis)......... 4.5"
Spindle-Center To Table-Top, Minimum.... 0"
Spindle-Center To Table-Top, Maximum.... 16"
Spindle Taper........................... #50 NSTD
Spindle Speeds, Range................... 38 to 1142 RPM
Spindle Motor, Horsepower............... 10 HP
Hydraulic Motor, Horsepower............. 3 HP
PRICE: F.O.B. OUR WAREHOUSE............ $2,950.00
