Associated research 5060AT ac hypot & ground continuity

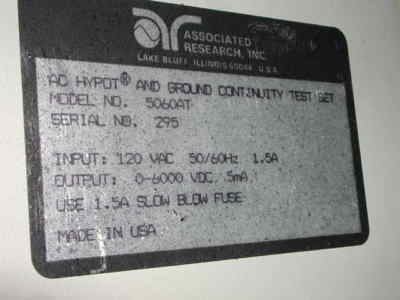

Associated Research 5060AT AC Hypot & Ground Continuity Test Set 120VAC 50/60 HZ
No probes are included with this unit. I guarantee no DOA.
* Output range: 0 to 6000 Vdc
* Meter: analog with 50 V reading resolution
* Leakage current range: .75 mA to 5 mA
* Accuracy: 2% full scale with 2% tracking
* 120 Vac, 50/60 Hz operation
* Weight: 16.35 lb; Size: 168 mm (6.6 in)H x 279 mm (11.0 in)W x 279 mm (11.0 in)D

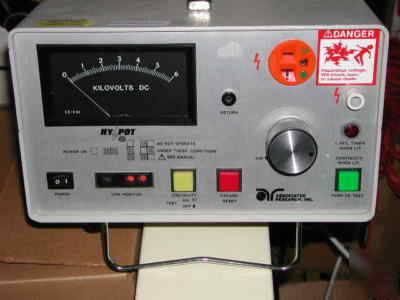

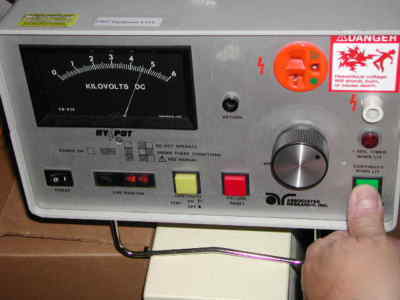

* The 5060AT Hypot Tester is designed for quick and easy use. All readings are clearly shown on the face of the unit. The unit features fault detection, continuity test, remote control, timer, and line safety monitor. The instrument is rated 0 to 6 kVdc @ 5 mA.
