Orion flex pallet stretch wrapper (low profile model)


*****40 rolls of 20" x 80ga x 5000' Machine Film FREE*****

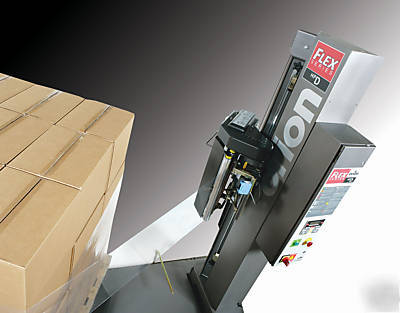

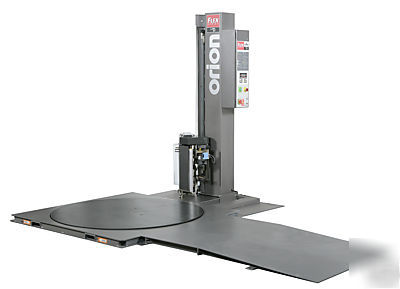

Low Profile Deluxe, Semi-Automatic, Heavy-Duty, Stretch Wrapping Machine
The Flex LPD provides your operation the most COST-EFFECTIVE, FEATURE-RICH, DURABLE and SAFE to operate semi-automatic wrapper on the market today.
The operator simply attaches the film to the load and presses the start button to begin the wrap cycle. After the pallet load is wrapped, the operator cuts the film and removes the load with a pallet jack, electric walkie or forklift. (InstaCut Automatic Film Severance is also available) The machine will wrap the load as you have pre-determined it to do, automatically adapting to the load size and shape. (Within machine specifications)
OPERATIONAL features on the Flex LPD
Easy to use Digital HMI Display (No maze of switches & pushbuttons!)
Secondary Turntable Speed Mode
DURABILITY features on the Flex LPD
5,000 Pound Turntable Load Weight Capacity
Multiple DuraGlideTM Turntable Support Bearings (No cam followers!)
Steel Deck Surrounding Turntable Plate (No exposed turntable edge!)
Direct Chain/Sprocket Turntable Drive (No belt!)
AC Motors with Variable Frequency Drives (No DC motor brushes!)
Power Track Film Carriage Cable Carrier
Structural Steel Channel Base Frame
SAFE interaction features on the Flex LPD

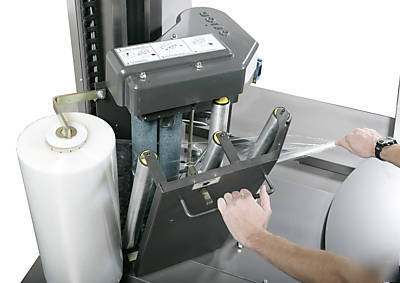

* InstaThread Film Carriage, Drop-In Film threading
* Film Carriage Down Obstacle Detection, stops drive
Film Carriage Drop-Lock device, prevents free-falling
FLEX LPD Standard Specifications
Maximum Load Size 55"W x 55"L x 80"H
Weight Capacity Up to 5,000 Pounds
Digital Human-Machine-Interface (HMI) Panel Display for easiest operator use
Industrial Pushbuttons & Switch for Cycle Start, E-Stop & Main Power
63" Diameter x 3/8 Diameter Structural Steel Plate
Surround Steel Deck protecting Turntable Edge
Multiple DuraGlideTM Turntable Support Bearings
Heavy Duty Chain Drive with Self-Adjusting Automatic Tensioner
Dynamic Positive Alignment home positioning feature
3-1/16" Height Floor to Top of Turntable
All Steel Construction Throughout
Forklift Portable from Front & Rear Base Design
Structural Steel Channel Frame front to rear
Adjustable Film Roping Bar Curls Film into Rope to Lock Load To Pallet
FLEX LPD Operational Sequence & Proposal Summary

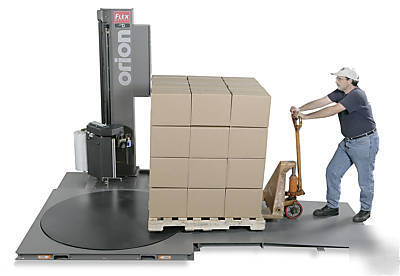

1. Pallet load is set onto the turntable platform via pallet-jack, electric-walkie or *forklift
(*NOTE: In forklift only applications, Flex HPD (High Profile) model is recommended)
2. Operator attaches film to pallet or load and presses start button
3. When wrap cycle is complete, operator cuts film
4. Driver removes wrapped load
Options Available - Some options may increase lead times
Ramp for Electric-Walkie Loading/Unloading $795.00 each
For More info: mike.****@quickpakinc.com
http://quickpakinc.com/index.html
