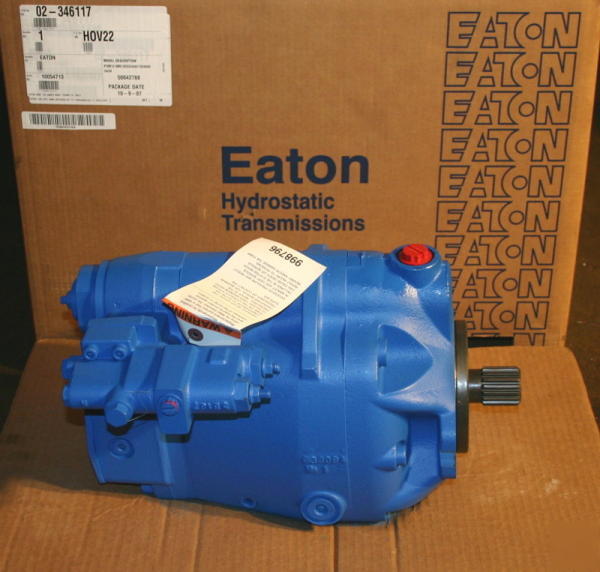

New eaton PVM113 hydrostatic transmission
Eaton PVM113 Hydrostatic Transmission NEW !!!
Model Code PVM131MR12EE02AAC19200000A0A
PVM Product Series - Variable Displacement Pump
131 Displacement - 131, 1 cm3/r [8.00 in3/r] (280 bar MAX0
M Valve Plate - Mobile Equipment Speeds
R Input Rotation - Clockwise (Righthand)
12 Input Shaft - SAE J744-38-4, SAE C-C, 17T Spline (Model 074,
E Mounting Flange - SAE J744-127-2 (C, 2-Bolt) (Models 057, 074,
02 Port Options - SAE J518 Flange Ports, SAE Auxiliary Ports
AA Pump Special Features - Adjustable Max Displacement Stop
C Control - Pressure and flow compensator with plugged orifice
19 Pressure Comp Setting - 186-194 bar [2697-2813 lbf/in2]
20 Flow Comp / IC Control Setting - 19-21 bar [275.5-304.5 lbf/in2]
00 Torque Limiter setting - None
0 Compensator Special Features - None
The M Series Piston Pump family was designed as a quiet, medium pressure pump for industrial applications. The cradle swashplate design pumps were created with low noise in mind. Design features reduce both the structure-borne and fluid-borne noise levels to market leading levels.
Metal forming, tube bending, machine tools, precision sawing, factory automation, press, and hydraulic power supplies.
Full 280 bar (4000 psi) continuous, 320 bar (4600 psi) intermittent pressure. Electric motor speeds.
Mineral-oil-base and fire-resistant fluid compatibility.
Displacements from 18cc to 141cc.
Pressure compensation and pressure/flow compensation controls.
Property and Condition is as Described"
