> New digital push pull gauge,500N force gauge, truck gage
New digital push pull gauge,500N force gauge, truck gage

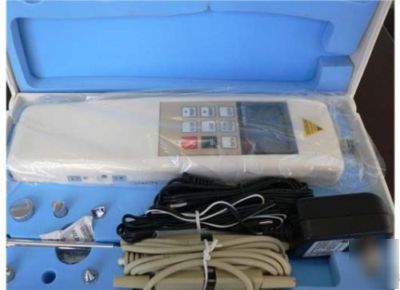

HF-500N Push Pull Gauge/Force Gauge
1)Muitiple displays in N/KG/LB, auto unit conversion;
2)RS232 Computer interface / Software for data download and analysis;
3)Setup the upper / lower limit freely. Indicator light / buzzer send out alarm;
4)Showing test direction ( Push or Pull );
6)High precision & resolution, adjustable sampling speed from 15 up to 480Hz;
7)Holding and removing the peak value automatically (1 to10sec can be setup );
8)In storage 800sets measuring data, and automatic calculate storage data average, max, min value. In storage data pagination browse and check;
9)AC power / Re-chargeable battery operation capable;
10)Defined period of auto power off without operation;
11)Port-in output ( baud rate 9600 ) can print 10 group storage testing data Max, Min, Average value and eligibility or disqualification judgement;
12)Handy use or fix on the test fixture ( option )
1)Capacity: 500N / 50Kg / 110lb;
2)Min unit: 0.1N / 0.01kg / 0.02lb;
5)Sampling speed: 15Hz to 480Hz;
6)Work temperature / Humidity: 0C to 40C, 15 to 80%;
7)Power Supply: 110 to 220V AC battery charger or battery operation (Nickel battery 6V/1500mAh );
8)Work environment: No vibrancy and corrosion;
9)Accessories: Pull clamps / Push clamp / Prolong stick / Mounting screws / english user manual / Carrying case / 110 to 220V Battery charger / PC software and serial interface cable.
I also have HF-2N,HF-5N,HF-10N,HF-20N,HF-50,HF-100N,HF-200N for your choice.
If you are interested in HF-1KN,HF-2KN,HF-5KN, please email me for the price.
