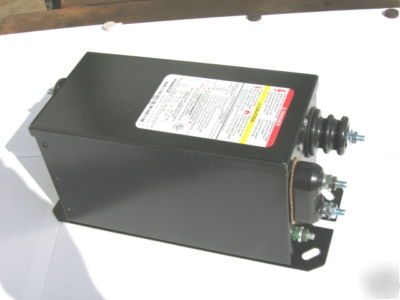

Franceformer 12030-P5G-2E neon transformer 12000 volts
Item ...................... Neon Transformer
Manufacturer ....... France a Scott Fetzer Company
Cat # ...................... 12030P5G2E
Pri Volts ................ 277
Sec Volts ............... 12,000 30ma 12000v 12,000v vac
Dimensions ............ 4.75" x 5.5" x 12.5" OVERALL
The only other new ones I found on the internet List for $188.15
France P5G2 / P5G2E Smart Series Outdoor Standard Transformers
* Primary Wiring Requirements of a Standard Transformer - with the added safety of Secondary Ground Fault Protection.
* Bypass Feature - For easy troubleshooting of ground faults and primary wiring problems. Overrides the SCGFP for up to 30 minutes.
* Diagnostic Circuits - .LED. indicates the reason for service, allowing for quick, easy troubleshooting.
* User Friendly - Adapts to any grounding situation.
* Secondary Circuit Ground Fault Protection - (SCGFP) Disables unit upon detection of arcs to ground in compliance with UL2161 and NEC requirements.
* Can be used in flashing/dimming applications.*
