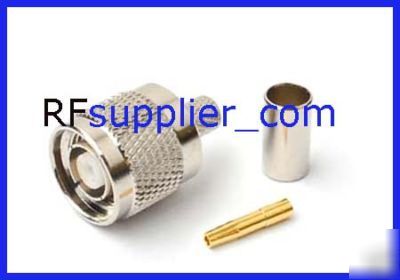

Rp tnc male connector for RG58 LMR195
RP TNC male connector for RG58 LMR195
Temp.range.................. -65 +165 C (PE Cable -40 +85 C)
Vibration....................... MIL-STD-202, Method 213
Impedance..................... 50
Frequency Range ............DC 11GHz
Working Voltage............. 500V max
Withstand Voltage.......... 1500V rms
Center Contact............... 1.5 m
Outer Contact ................ 1 m
Insulation resistance........ 5000 M
VSWR Straight................ 1.22
Right angle ...................... 1.30
Durability(mating)............. 500 cycles
shell ..................brass..........nickel plated contact pin .....brass.............. gold or silver plated
socket.......... beryllium ..........gold or silver plated
elastic contact .....beryllium.......... gold plated
