OPTO22 PB16T rack w/ ODC24 & IDC24 modules

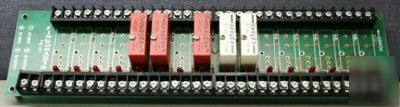

Opto22 PB16T 16-Channel I/O Module Rack w/ ODC24 & IDC24 Modules
Quantity & Module Model Number:
* Operating Temperature: 0 to 70 C, 95% Relative Humidity, Non-condensing
* Interface Connectors Field: 6 - 32 Screw Terminals
* Interface Connectors Logic: 6 - 32 Screw Terminals
* Compatible I/O Module Family: Standard (Generation 1)
The ODC24 output module is used for controlling or switching DC loads of 5-60 VDC. Each module provides 4000 volts (transient) of optical isolation between the field devices and the control logic.
Typical uses and applications for DC output modules include switching the following loads:
* Operating Ambient Temperature: -30 C to 70 C
* Isolation, Input-to-Output (Transient): 4000V
* Output Voltage Drop Maximum Peak: 1.6V
* Operating voltage range: 5-60VDC
* Current rating: 3A @ 45 C ambient / 5A @ 70 C ambient
* UL Motor Load rating: 1.5A
* Off-state leakage @ max. voltage: 1mA
* Logic voltage nominal: 24VDC
* Logic voltage range (Vcc): 18-32VDC
* Logic pickup voltage: 18VDC
* Logic dropout voltage: 1VDC
* Logic input current @ nominal logic voltage: 18mA
* Control resistance (Rc in schematic diagram): 2.2K ohms
The IDC24 can act as either a DC or AC input, accepting 10-32 VDC or 12-32 VAC. All AC and DC input modules have a bridge-rectifier input. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit.
* Operating Ambient Temperature: - 30 to 70 C
* Output Voltage Drop: logic side: 0.4 volts @ 50 mA
* Output Leakage With No Input: 0.1 mA @ 30 VDC
* Transistor: 30 volts breakdown
* Input Voltage Range: 10-32VDC / 12-32VAC
* Input Current @ Max Line: 25mA
* Input Allowed for No Output: 1mA @ 3V
* Output Supply Voltage-Nominal: 24VDC
* Output Supply Voltage-Range: 20-30VDC
* Output Supply Current @ Nominal Logic Voltage: 18mA
* Input Resistance: 1.5K ohms
