Mcg brushless dc servo motor w/ encoder bmc-AB34001

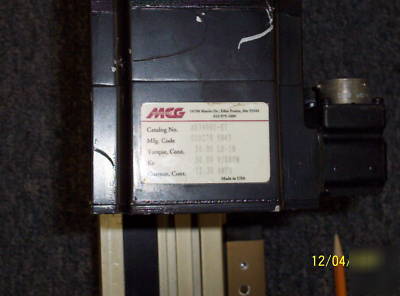

MCG BRUSHLESS DC SERVO MOTOR w/ 1,000 line encoder
NOTE: This sell does NOT include speed reducers or actuators shown in photo. Those items are for sell in separate sell.
PART NUMBER: BMC-J341-AB34001-E1
RATED POWER: 986 watts (1.32 HP)
MOTOR CONSTANT: 3.17 in-lb/watt^0.5
INPUT INERTIA: 0.0018125 IN-LB-SEC^2.
PEAK STALL CURRENT: 150.53 in-lb
CONTINUOUS STALL CURRENT: 30 in-lb
SIZE: 7.36"L (+1.25"L x 0.5" shaft) x 3.54" x 4.54"
