Ingenico en-touch 1000 pos touchscreen cc terminal

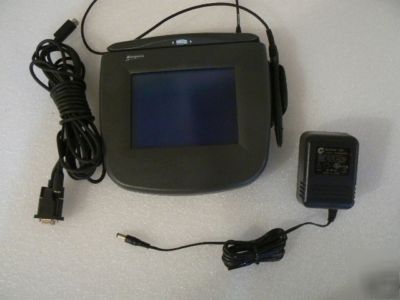

INGENICO EN-TOUCH 1000 POS TOUCHSCREEN CC TERMINAL with cord and power supply.
These recent off lease units are all cleaned and tested to be 100% functional or your money back. We want your complete satisfaction.
Multi-lane transaeptance workhorse

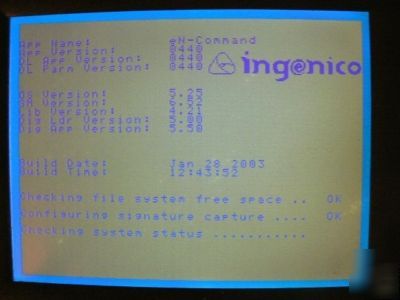

Display VGA (320 x 240) backlit graphics LCD
Signature area is width of screen and 1" high.
Electronic stylus pen touch digitizer with 385 DPI
User can interact with screen via attached inkless
electrostatic pen or capacitive finger touch.
Standard memory is 512Kb flash and 128Kb SRAM.
Flash memory is upgradeable to 1.5Mb for additional
application functionality and extra screen definition.
Bi-directional magnetic stripe reader
Dual track: (1 & 2) with triple track option
RS232, RS485, USB, Powered USB
Auxiliary RS232 port is available (except with USB).
Additional RS232 ports are available via remote
Single cable for power and host communications.
Retail Base Application available that supports
OPOS, OLE for Point of Sale, is an object-oriented
programming environment used to develop POS
terminal applications based on the popular Microsoft
JPOS, Java Point of Sale, is an object-oriented
terminal applications based on the popular Java
A library of API s is available for applications
written for Windows, FlexOS, and DOS.
Our eN-Form tool kit is a group of Microsoft Active X
controls, which facilitate application development
system. The kit includes a visual form designer for
creating graphical and interactive displays.
Application interfaces include DOS, IBM 46XX
Retail Base Application provides application
development for standard IBM POS Register
Software and is compliant with the de-facto standards
N-Touch 1000 Software Developer Toolkits (SDK)
for Retail Base Application, OPOS and JPOS
Multiple DUKPT and Master Session keys available
Secure key injection process required
Tamper-resistant security module
Inherently secure microcontroller

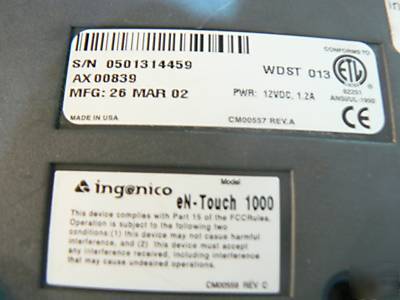

Voltage 11-14VDC 1.2 A power supply, 60 Hz, 24W
2.75" (70mm) x 8.5" (216 mm) x 7.5" (191 mm)
