2003 scmi sigma 105 plus, high speed cnc beam saw

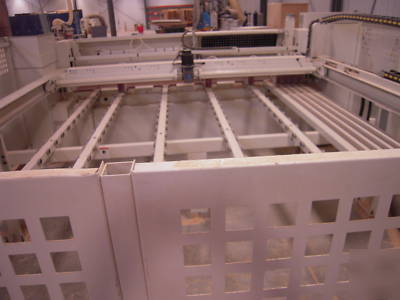

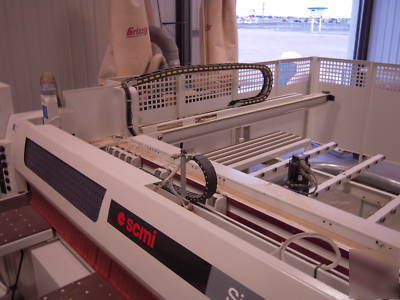

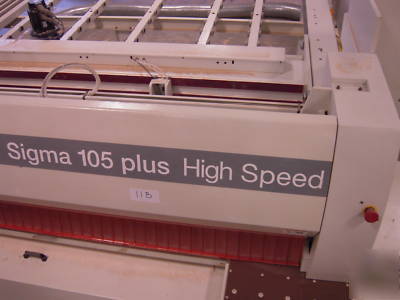

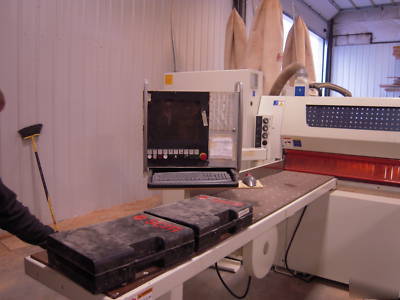

2003 SCMI Sigma 105 Plus, High Speed CNC
Horizontal Beam Saw, With Safety Fencing
**Long cut rip cut capacity of (3,200 mm), 3-3/4" cutting height with a 105 mm blade projection using a 380 mm dia. blade, 15 HP main saw motor, 4,400 RPM main blade speed, 2 HP scoring motor, 7,650 RPM score blade speed.
** Feed speed variator for saw carriage, 39 - 197 FPM, return speed 197 FPM, automatic saw carriage lubrication, balanced on hardened cylindrical guides, external score saw adjustment, THK guides for vertical saw movement; programmable rear fence with material grippers, rack & pinion movement, 39 - 262 FPM forward speed, 262 FPM reverse speed; grippers fit into a slotted pressure beam for positive material control during the final cut.

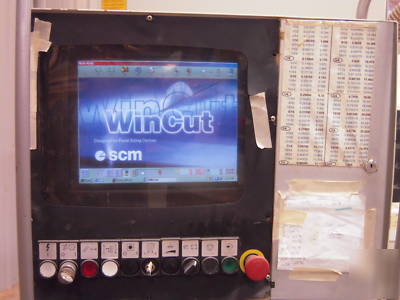

**Non-proprietary (can be replaced with any office PC) from end PC, Pentium 300 MHZ, 6.4 GB hard drive, 64 MB RAM, 15" color super VGA monitor, on-screen diagnostics & production reports, SCM real time "SEZIONA" operation software, (2) serial ports & (1) parallel port, spacing available for networking cards.

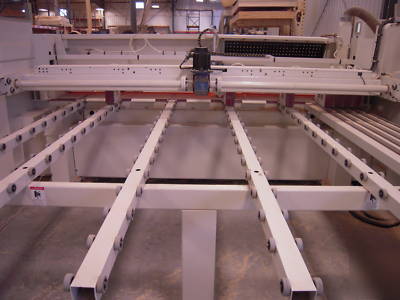

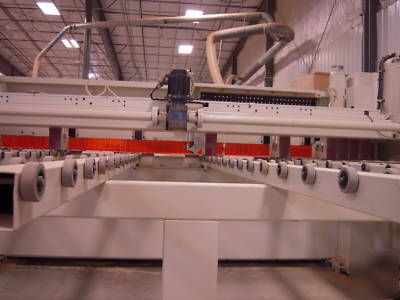

**Rear support rails with rollers; (1) front bakelite-coated air table 79" x 20", and (2) 59" x 20" air tables.

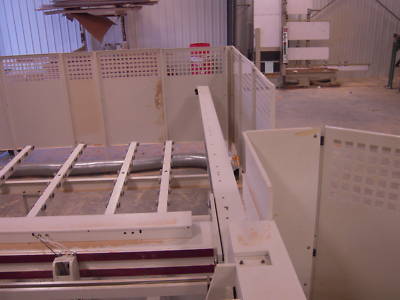

**Complete with: Automatic crosscut side aligner out to 72-3/4", plastic safety sectors & emergency bar surround cutting area, service kit and manuals, triple dust collector outlet.
**Dust Collectors are NOT included
picked up within 2 weeks of purchase.
Please Email with any questions on this item.
I check my email several times a day, so you will have an answer quickly.
