> 15"/15.5" x 30" leblond "regal" engine lathe #23831
15"/15.5" x 30" leblond "regal" engine lathe #23831

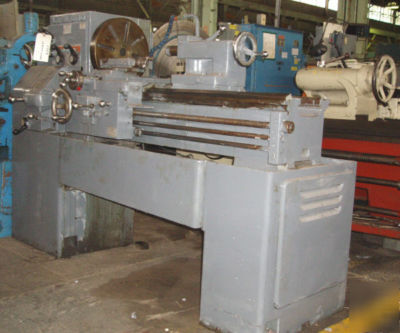

15"/15.5" x 30" LEBLOND "REGAL" ENGINE LATHE
New 1966, Serial No 6C737, Model 6C, Series "REGAL"
Swing Over Bed Ways, Rated............. 15"
Swing Over Bed Ways, Actual............ 15.5"
Swing Over Cross-Slide................. 9.5"
Distance Between Centers............... 30"
Cross-Slide Cross-Feed Travel.......... 8.875"
Tailstock, Spindle Travel.............. 5"
(12) Spindle Speeds, Range............. 30 to 1200 RPM
(48) Carriage Longitudinal Feeds....... .0018 to .106 IPR
(48) Thread Changes, Range............. 4 to 224 TPI
