6IN1 lcd digital clamp multimeter ac dc multi tester

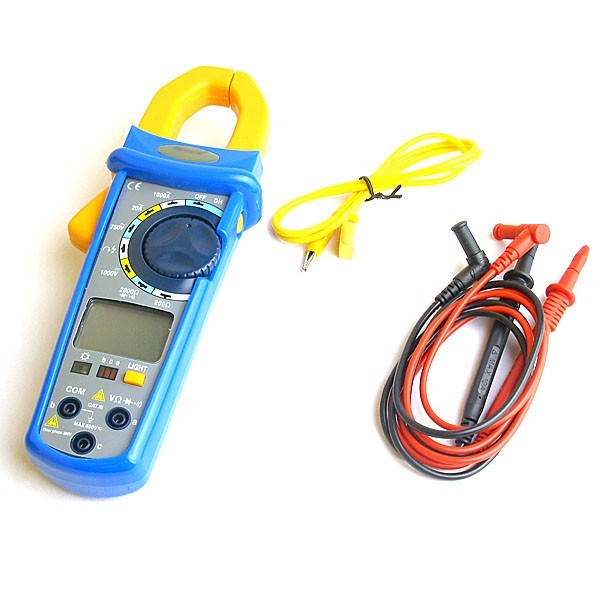

6in1 LCD Digital Clamp Multimeter AC DC Multi Tester
6 Separate Functions in 1 Compact Handheld Meter:
* Average sensing, calibrated to rms of sine wave
* Overload protection: 1000A rms within 60 seconds
* Overload protection: 1000V DC/750Vrms AC
Built in buzzer sounds if resistance is less than 30
Open circuit voltage approx 3V
* Overload protection: 250V DC/250Vrms AC
Display reads approx forward voltage of diode
Forward DC current approx 1.5mA. Reverse DC voltage approx 3V
* Clamp opening capability: 4cm (1.5")
* Operation temperature: 0 C ~ 40 C (32 F ~ 104 F)
* Storage condition: -20 C ~ 60 C (-4 F ~ 140 F)
* Power: 9V zinc carbon battery (included)
* Display: Backlit 3 1/2 digits LCD with a max. reading of 1999
* Dimensions: 8.5 x 25 x 4cm /3.5 x 9.8 x 2"
* Weight (inc battery): 500g
* Hard plastic, padded carry case
* Removable, protective rubber casing
