345.6 ohm /m precision resistor wire manganin net 230G

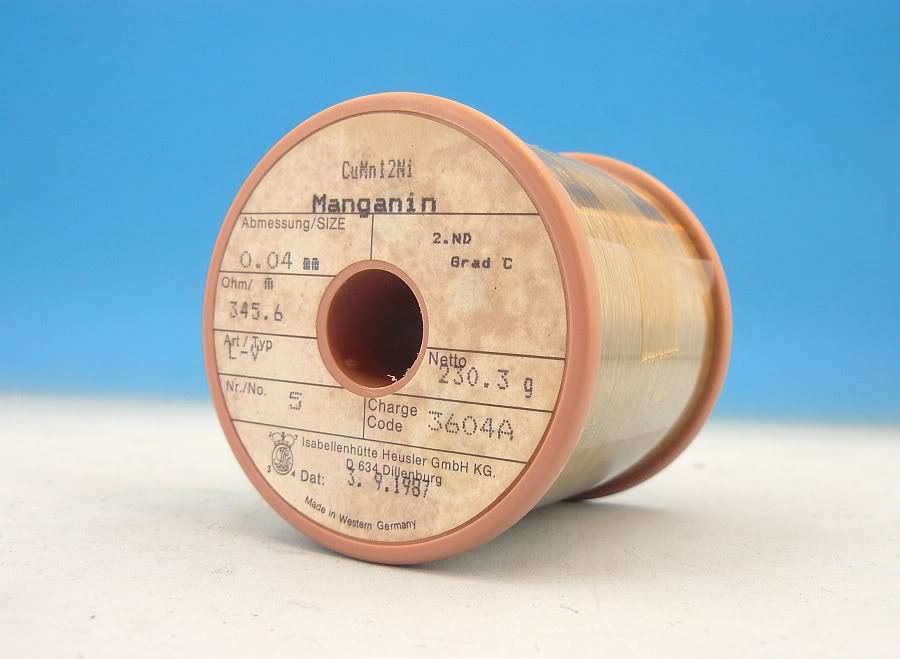

345.6 Ohm /m PRECISION RESISTOR WIRE MANGANIN - BRAND NEW .
Manganin - 0.04 mm diameter - 345.6 Ohm/m resistance - Net weight 230.3 grams - Made in Germany - 1987
Original datasheet : http://www.isabellenhuette.de/pdf/widerd/MANGANIN-ISABELLENHUETTE-R.pdf
Manganin is a trademarked name for an alloy of copper, manganese, and nickel. Typically, the alloy contains 12% manganese and 2% nickel, with 86% copper.
Manganin foil and wire is used in the manufacture of resistors because of its superior temperature coefficient and long term stability. Several Magnanin resistors served as the legal standard for the ohm in the United States from 1901 to 1990.
Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.
