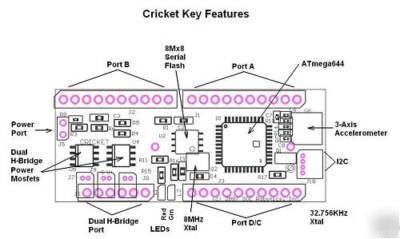

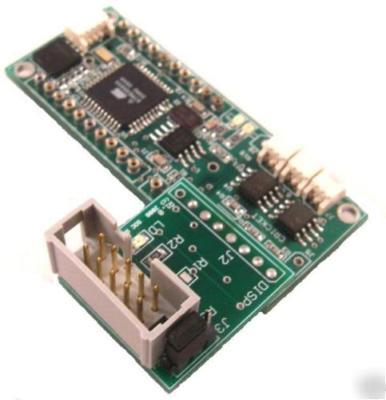

Cricket avr ATMEGA644 h-bridge with arduino support
Arduino support is now available for the Cricket. Program the Cricket using the Arduino programming environment. A sketch is available for the Cricket.
The Cricket is programmed in C using either a GNU C Compiler, AVR Studio V4.13 or higher with GNU C integrated with the IDE or a third party IDE such as ICCAVR from ImageCraft. The ATmega644 may not be programmable with ICCAVR so a special utility (ISProg.exe) is available to program the processor. Check the SOC Robotics web site for program examples and ICCAVR project files. ICCAVR project files are on the included CD. Example code is provided to read the accelerometer, communicate on the I2C port, run the H-Bridges and how to use the UART. The example Project files that come with the Cricket were written using the ImageCraft ICCAVR Windows IDE. With the release of AVR Studio V4.13 the open source AVR GNU C Tool chain is now integrated with the AVR Studio V4 Windows IDE and is recommended for cost sensitive development projects. The ImageCraft IDE is a low cost commercial C development environment and includes support for 64bit floating point operation in the PRO version.
The Arduino Programming Environment can be used to program the Cricket. Sample files are provided to help configure the Arduino environment for the Cricket. The optional USB10 can be used to program the Cricket using the Arduino bootloader.
Download the Cricket Technical Reference Manual (pdf).
Download the USB10 Technical Reference Manual (pdf).
The following options can be ordered with the Cricket:
ISP10 - Parallel Port Programming Adapter
USB10 - USB 2.0 Embedded Communication Processor and Programmer
RG20 - Dual axis rate gyro magnetic compass
RG30 - Dual axis rate gyro and dual axis
WS14 - Mounting adapter for the rate gyros and digital compass
* ATmega644 RISC Microcontroller (10.0MHz)
* Dual 1.5A 18V H-Bridge drivers for DC motor control
* Real time clock (32.768KHz)
* 1Mx8 external Serial Flash

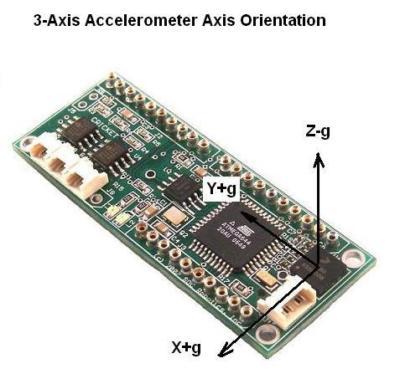

* 3-Axis Accelerometer 1.5,2,4,6G selectable
* 6 Pin ISP Port for programming
* Up 15 general pupose digital I/O signal pins
* 2 LEDs (Green, Red) for status/monitoring
* 2.8-3.3VDC in (polarity protected)
* Nominal power consumption: 8ma active, 0.8ma standby
